Bourdon Gauge Trainer comprises of bourdon pressure gauge fitted
on a pressure chamber, a displacement sensor is attached to the edge
of the bourdon tube to sense the deflection of the bourdon tube due
to pressure. The displacement indicator is provided to measure the
deflection of the tube in terms of pressure and also in mm.
This equipment should consists of
Capacitance Trainer comprise of parallel plate/ angular capacitor
with dielectric medium air as sensor, mounted on the base plate with
scale for displacement. Digital indicator is provided to read the
change in capacitance in terms of displacement
SPECIFICATIONS:
Model : UITM – 110 (Linear Displacement)
: UITM – 152 (Angular Displacement)
Capacitance sensor : Linear – Parallel plate capacitor.
: Angular – Gang capacitor.
Displacement : Linear – 50mm
: Angular – 0 – 90º
Indicator : 3 ½ digit to read ± 1999 counts.
Power supply : 230V ± 10% @ 50Hz.

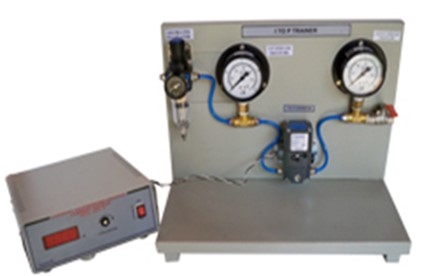

CURRENT TO PRESSURE TRAINER CONVERTER (UITM-16):
This equipment should consists of
Current to Pressure Trainer: This setup comprises of a I to P converter
fitted on a base. Two pressure gauges are fitted one at the input side and the
other at the output of the I to P converter. A current source with digital
display is provided to excite the I to P converter. A constant air supply should
be provided to the system at 20 PSI Pressure from a standard compressor
Accessories Supplied: Air Regulator with fitter. Necessary tubing and cable.
Display : 3½ digit LED display. .
Current o/p : 4 to 20mV Variable by a potentiometer.
Resolution: 0-1mA.
Power Supply: 230V 50 Hz.
ptional: Air compressor at extra cost..
DEAD WEIGHT PRESSURE TESTERS (UITM-19):
This equipment should consists of
Dead Weight Pressure Gauge Tester is ideal for testing and calibration
of pressure gauges, pressure transducers, recorders, digital calibrators
etc. the system used in the dead weight is vertically mounted precision
lapped piston and cylinder assembly with accurately calibrated mass for
loading the piston. Pressure is built easily by single cylinder pump at
very high rate. The whole system is housed inside a stainless steel case
with elegant look. Pressure ports are provided to fix the gauges to be test
ed. Acrylic see-through oil tank is designed to use it as oil reservoir
This table top model comprises of two pressure chambers: One for high
pressure and another for low pressure. The two pressure chambers are
fitted with pressure gauges. The differential pressure transmitter is
connected to the two chambers. The pressure is built by a foot air pump.
Digital instrument is provided to indicate the differential pressure with
transmitter output.
SPECIFICATIONS:
Model : UITM 21.
Pressure Range : 0-15 PSI.
Different pressure Sensor : Piezoresistive type 0-30 PSI sensor.
Differential Setup : Two Pressure cambers coupled with valve in between.
Accessories: foot air pump to build pressure.
Display : 3 ½ digit LED display.
Transmitter O/P : 4-20mA for 0 to 15 PSI.
Display Resolution : 0-1mA Pressure 0.1 PSI.
LVDT DISPLACEMENT MEASUREMENT TRAINER:
Displacement Measurement module comprises of LVDT with micro
meter jig fitted on the base plate to give displacement to the core of
LVDT. Digital 3½ digit indicator is supplied to read the displacement
in mm.
SPECIFICATIONS:
Specification:
LVDT Range :± 10.0mm, (0-20mm)
Indicator :3½ digit to read upto ±1999 counts
Excitation Voltage :2000 Hz at IV PTP
Zero Adjustment :Front panel through Potentiometer.
Calibration :Front panel through Potentiometer.
Connection :Through 6 core shielded cable with Din connector.
Power :230V ±10%@50Hz.
Accessories :Micrometer(0-25mm)mounted on a base plate to conduct
Experiment
LOAD MEASUREMENT TRAINER MODULE (UITM-04):
Load Measurement Trainer comprises of strain gauge based load cell,
loading arrangement to load in compression, weights and digital load
indicator to read the load in kg.
TECHNICAL SPECIFICATIONS: :
Model : UITM 04
Load cell : 1 kg Capacity
Indicator : 3 ½ digit to read up to ± 1999 counts
Bridge balancing : Potentiometer
Bridge Excitation : 10 V DC
Resolution : 0.01kg
Power Supply : 230V ± 10% @50 Hz
Accessories : 100g × 10 Dead Weights.
Necessary cable provided
PIEZO – ELECTRIC MEASUREMENT TRAINER MODULE (UITM 10):
Piezo – Electric Trainer comprises of piezo – electric crystal mounted
inside housing and fitted on a base plate. Digital indicator is supplied
to indicate the vibrational force.
SPECIFICATIONS: :
Model : UITM – 10
Piezo sensor : Donut type 100pf piezo – crystal.
Vibration force : Force extended manually by taping the sensor
top at various intervals
Display : 3 ½ digit to read ± 1999 counts.
Power supply : 230V ± 10% @ 50Hz.
Accessories : Necessary cables provided.
PRESSURE MEASUREMENT TRAINER MODULE (UITM-05):
Pressure measurement Trainer comprises of strain gauge based pressure
cell, foot pump to build the pressure, pressure tank fitted with release
valves and a bourdon pressure gauge. Digital pressure indicator to read
the pressure in Kg/Cm2 is provided
Speed Measurement Trainer comprises of photo reflective & magnetic
pickup sensors, fractional HP cc
SPECIFICATIONS: :
Model : UITM – 07 (Both Magnetic & Photo reflective)
Speed range : Upto 1400 RPM
Speed sensor : Magnetic Pickup.
: Photo reflective Pickup.
Display : 4 digit LED display.
Accessories : DC Motor (12V) fitted with 60 teeth tone wheel for Magnetic Pickup
: 60 teeth copper slotted wheel for photo reflective.
: 1.2V to 12V variable power supply to vary the Motor speed.
ROTAMETER TRAINER MODULE (UITM-13):
This setup is a table top model, it comprises of source and measuring
tank. The measuring tank is of acrylic material with graduation marked
in liters. A small FHP pump is fitted to circulate the water. A Rotameter
with control valve is used to measure the flow rate. Digital timer is
provided to note down the duration of flow and the volume of water is
measured by the markings on the measuring tank to calculate the actual
flow rate.
SPECIFICATIONS: :
MModel : UITM – 13
Rota meter : Acrylic body with floating dead weight.
