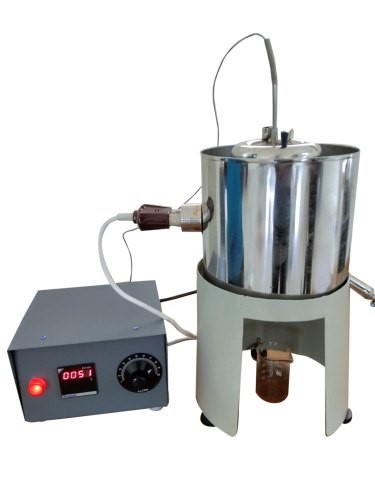

REDWOOD VISCOMETER MULTIPLE APPARATUS:

  • This equipment should consists of One Red wood No. 1 cup and One Red wood No.2 cup are installed in the bath. The bath is made from S.S Sheet the temperature is controlled by Electronic Digital Temperature Controller. The Stirring is done by FHP electric motor in the heating compartment. The unit has 2 sets of oil cup covers thermometer clips and bell valve. Suitable to operate on 220 volts AC Circuits.
    • RAP 109 REDWOOD VISCOMETER MULTIPLE APPARATUS OPTIONAL ACCESSORIES
    • RAP-101 a IP 8C (0/45ºCx0.2ºC) Low range Thermometer
    • RAP 101 f Spare cup with valve for Redwood No.1.
    • RAP-101 b IP 9C (40x85ºCx0.2º) High range thermometer
    • RAP 101 g Spare cup with valve for Redwood No.2.
    • RAP-101 c IP 10C (76x122ºCx0.2ºC) High range Thermometer
    • RAP 101 h Polish wooden case for Redwood No.2 Apparatus.
    • RAP 101 d Flask Receiver 50ml capacity
      • RAP 101 I Spare heater for Redwood No.1 and No.2 App.
    • RAP 101 e Polish wooden case for Redwood No.1 Apparatus
    • RAP 101 j Rexine Dust Cover for RAP-104, 108,109 Model.
    • RAP 101 k Spare Ball Valve for Redwood No.1 and No.2 App
    • RAP 101 l Stop watch Electronic Model.
    • RAP 101 m Stop Clock Table Model .

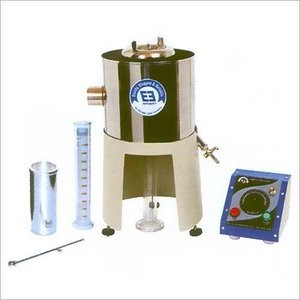

    TAR VISCOMETER APPARATUS:

  • This equipment should consists of As per IP 72 and is 1206 standards. It is used for determination the viscosity of road oils and cut back bitumen. It consists S.S Bath with cup of 10 mm or 4mm orifice and sleeve, Stirrer with lifting clip and ball. The assembly kept on Suitable stand with leveling screws. Suitable to operate on 220 Volts AC mains.

    • RAP 110 Electrical Heating with energy Regulator Control

    RAP 110 A Electrical Heating with Digital Indicator and Regulator

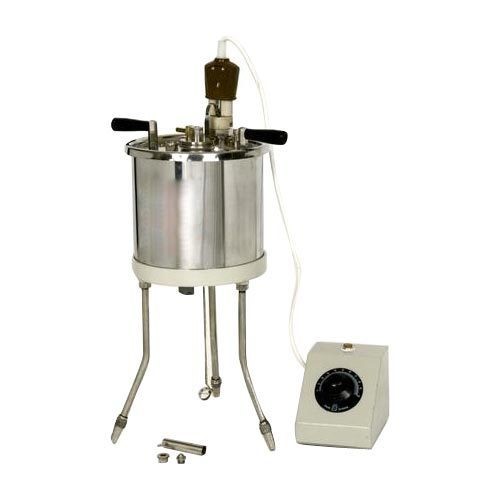

    SAYBOLT VISCOMETER APPARATUS:

  • This equipment should consists of Made as per ASTMD-88 specifications with Universal and Furol jets made of stainless steel. Stirring is done by hand with turn table arrangement (without Strainer, with drawl Tube and glass wares) Suitable to operate on 220 Volts AC Mains
  • RAP 113 Elect. Heating with Energy Regulator Control
  • RAP 113 A Elect. Heating with Electronic Indicator and regulator
  • RAP 114 Single Tube Say bolt Viscometer With Control Panel (Double Walled) digital Electronic Controller and F.H.P Stirrer

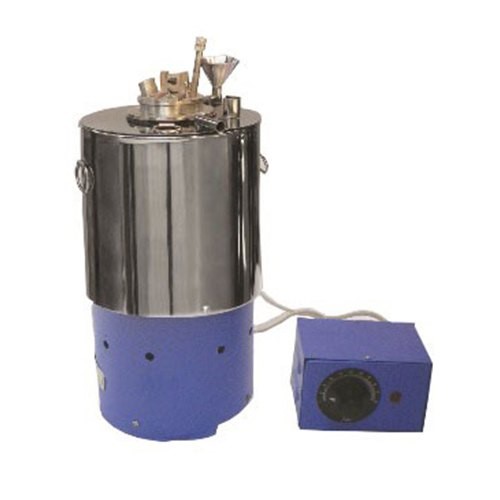

    • ABELS FLASH POINT APPARATUS:

  • This apparatus is suitable for determining the close cup flash point of petrole um and mixtures according to 1P 33 and 1P 170 and also IS 1448 (part1) 1985 (P: 20). It is suitable for oils whose flashes below 70º C. It is supplied with oil cup, cover fitted with stirrer, the thermometer socket S.S water Bath, stand. An electric heater is fitter at bottom for operation on 220 volts AC circuits.
    • APPARATUS:
  • RAP-120 -Abels flash point Apparatus, Elect Heating with Energy Regulator control- Oil Test Jet
  • RAP_121-Same as above-but with concealed Hot plate. Oil Test Jet.
  • RAP-122A- Abels Flash point App. With regulator Digital Temp. indicator
  • RAP-122B-Same as above-with Geared FHP. Elect Driven stirrer (120 R.P.M)
  • RAP-123 -Fully Automatic Abel flash point apparatus Temp range +5ºC to 85ºC micro processor controlled with key board for programming. Gas Jet system complete unit.
  • RAP-124- Abel flash point apparatus temp range-18ºC to 70ºC with REFREGERATION SYSTEM as per 1P-170 with oil taet jet system with Digital Temp. Indicator and FHP motor stirrer

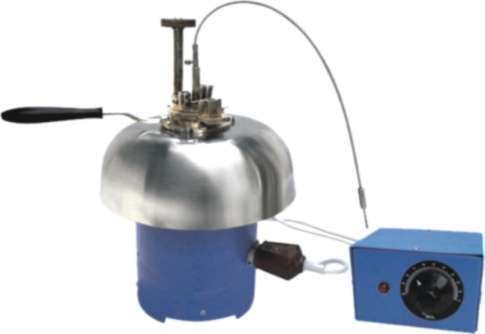

    • PENSKY MARTEN FLASH POINT APPARATUS:

  • This apparatus is made as per 1P 34, ASTMD-93 and IS 1448 (part1) 1270 (P.21) and IS 1209 -1953 method B. Used for finding out Flash point above 70ºC and below 300ºC. The instrument having Oil test jet/ Gas Test jet FlameDevice, stirrer with flexible shaft. The Assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated Handleand locking arrangement near cup flange. The assembly is kept on round shape electric heater with separate temp regulator. Suitable for operation on 220 volts 50 cycles AC circuits
    • CAT NO PENSKY MARTENS FLASH POINT APPARATUS:
  • RAP 125 P.M, Flash point App. Elect Heated with energy Regulator Oil test Jet
  • RAP 126 Same as above- Elect Heated with concealed Hot plate & oil test jet
  • RAP 127 P.M. Flash point App. Elect with energy Regulator Geared Motor stirrer (120R.P.M) Oil Test Jet.
  • RAP 128 P.M. Flash point App. With Electronic Temp Indicator and regulator oil Test jet
  • RAP 129 Pensky Martens Flash point App with Electronic voltage Variac and Digital Temp. Indicator and Constant speed stirring device Oil test jet.
  • RAP 130 Semi Automatic Flash point Apparatus with Electronics Temp Controller, Automatic Dipping cycle with Remote Control Oil Test jet of Gas Test Jet.
  • RAP-131 Fully Automatic Flash point App Micro Controller based with LCD display Temp Range from 80ºC 0º1c Direct resolution automatic stirrer Gas Test Jet System

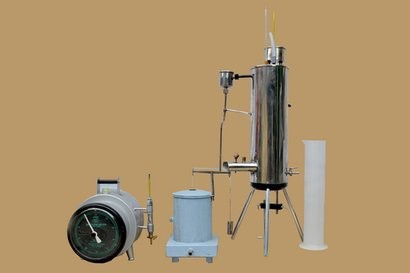

    • JUNKERS GAS CALORIMETER APPARATUS:

  • The instrument consists of Calorimeter with Burner on Tripod stand, Gas flow meter (Non recoroding type) and pressure Governor. The Calori meter measures the calorific value of gaseous fuels from 120 B.Th. U. to 3000 B.Th.U (1000 to 26000 K.cal./Cu Meter). It also consists, measuring jar of 2 Lit. cap and 50ml.cap.with rubber tubing for gas water connection.
  • RAP 147 A Junkers Gas CLORIMETER App. With 2 Nos. Thermometers
  • RAP 147 B Same as above—with digital Temp indicators for measuring outlet temperature

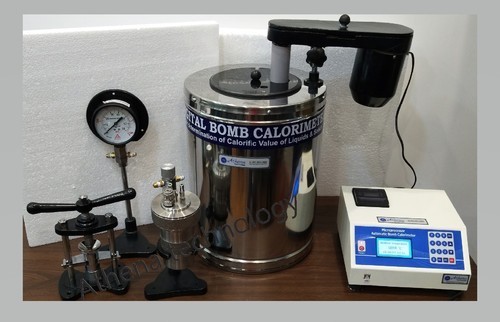

    • BOMB CALORIMETER APPARATUS:

  • It is used for determination of calorific value of liquid & solid fuels. The Instrument consists of S.S. Body made out of corrosion resisting stainless steel Rod cap. 300ml, Calorimeter vessel, outer Jacket with insulated Body, offset stirrer, S.S Crucible, pallet press, ignition wire, pressure gauge, with flex ible pipes with electronic firing unit. RAP 145 a BOMB CALORIMETER APP. DIGITAL Thermometer 0.1ºC Readout RAP 145 b Same as above ---with Digital Thermo meter of 0.03ºC Readout and Remote control System RAP 145 c BOMB CALORIMETER App. With 0.01ºC Readout with Remote control system

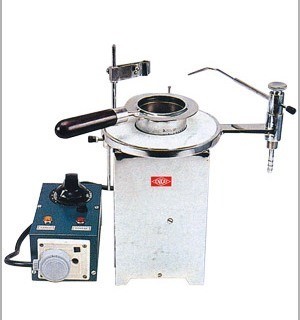

    • CLEAVELAND FLASH POINT & FIRE POINT APPARATUS:

  • This apparatus is used for determination of flash point and fire point of petroleum products Open cup flash above 80ºC as per specification 1P 36 and IS: 1448 (p: 69) 1969. The apparatus consists of a cup, heating plate to specific dimension thermometer clip and test flame attachment with swivel joint for passing over test liquid surface in the prescribed manner, Heating is controlled by means of energy regulator fitted to the apparatus. Suitable for operation on 220 volts 50 cycles AC Circuits.
    • CAT NO. CLEAVELAND FLASH POINT APPARATUS
  • RAP 132 Cleveland flash point & fire point Apparatus Electrical Heating with Energy Regulator Gas Test jet
  • RAP 133 With oil Wick Arrangement
  • RAP 134 same as above with –Gas jet & Oil wick Arrangement Combined Model
  • RAP-135 Cleaveland flash fire point App. With Electronic Digital Temp Indicator and Temp Regulator
  • RAP 136 Automatic Flash & fire point App. Membrebce key pad to selection of Disered Flash point programme. Rapid heating stage multi Functional Arm for ignition device. Complete set.
  • RAP 132 a Thermometer 1P 28C (-5ºC to 400ºC)
  • RAP 132 b Polish wooden case for RAP-132,133,134 Mode
  • RAP 132 c Rexine cover for dust protection to RAP-135-136 model
  • RAP 132 c Spare cup with Handle
  • RAP 132 e Spare Nichrome element
  • RAP 132 f L.P.G. Test flame container with valve

    • CARBON RESIDUE APPARATUS (CONRADSON )

  • It is made as per IP 13, ASTM D-189 Specifications. It is useful to determine amount of Carbon residue when an oil is evaporated under specified conditions. The apparatus consists of spun sheet iron crucible 25 cc Capacity , Sheet iron hood and sheet iron block on a stand, gas Burner.
  • RAP 150 A Conradson Carbon Residue single Test Apparatus (Gas Burner)
  • RAP 150 B Elect Heating with Energy Regulator control
  • RAP 151 A Conradson Carbon Residue Four Test App. (Gas Burner)
  • RAP 151 B Elect Heating with separate Energy Regulator controls

    • REID VAPOUR PRESSURE TEST APPARTUS:

  • Made as per IP 69 & IS 1448 (P: 39). 1967 elect. Heated with FHP motor Stirrer temp. controlled by Electronic Digital Temp.controller. The apparatus consists one air chamber, one Liquid Chamber without cock and pressure gauge.
  • RAP 157 Single Test Bath
    • RAP 158 Double Test Bath OPTIONAL ACCESSORIES:
  • RAP 157 a Liquid Chamber with Cock (if required)
  • RAP 157 b Spare Air chamber only
  • RAP 157 c NP Pressure Gauge 0-1Kg./Cm2
