1 PH AUTO TRANSFORMER

Bench mounted type single phase ranges from 1 amp to 28 amps Standard input 230V 50Hz, output 0….270V 50Hz 1ph High efficiency with no output voltage distortion Ambient temperature rating up to 45 deg C Long life, high quality wiper design.
  • 1P-3 Fully enclosed free standing 1ph 230V 0…270V 1 Amp
  • 2P-3* Fully enclosed free standing 1ph 230V 0…270V 2 Amps
  • 3P-3 Fully enclosed free standing 1ph 230V 0…270V 3 Amps
  • 4P-3 Fully enclosed free standing 1ph 230V 0…270V 4 Amps
  • 6P-3* Fully enclosed free standing 3ph 415V 0…470V 6 Amps
  • 8P-3 Fully enclosed free standing 1ph 230V 0…270V 8 Amps
  • 10P-3* Fully enclosed free standing 1ph 230V 0…270V 10 Amps
  • 15P-3 Fully enclosed free standing 1ph 230V 0…270V 15 Amps
  • 20P-3* Fully enclosed free standing 1ph 230V 0…270V 20 Amps
  • 28P-3 Fully enclosed free standing 1ph 230V 0…270V 28 Amps

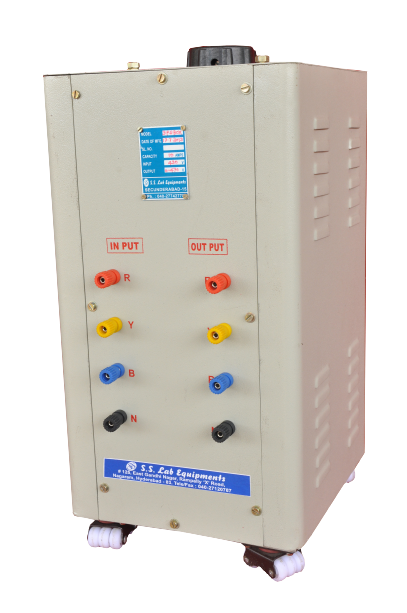

3PH AUTO TRANSFORMERS

Bench mounted type three phase ranges from 1 amp to 28 amps Standard input 415V 50Hz, output 0….470V 50Hz 3ph High efficiency with no output voltage distortion Ambient temperature rating up to 45 deg C Long life, high quality wiper design
  • 1P-3 Fully enclosed free standing 3ph 415V 0…470V 1 Amp 814VA 120 150 270 7.3
  • 2P-3* Fully enclosed free standing 3ph 415V 0…470V 2 Amps 1628VA 170 145 430 13.0
  • 3P-3 Fully enclosed free standing 3ph 415V 0…470V 3 Amps 2442VA 170 145 430 13.5
  • 4P-3 Fully enclosed free standing 3ph 415V 0…470V 4 Amps 3256VA 190 245 520 27.5
  • 6P-3* Fully enclosed free standing 3ph 415V 0…470V 6 Amps 4884VA 190 245 520 29.0
  • 8P-3 Fully enclosed free standing 3ph 415V 0…470V 8 Amps 6512VA 190 245 520 32.0
  • 10P-3* Fully enclosed free standing 3ph 415V 0…470V 10 Amps 8140VA 190 245 520 34.0
  • 15P-3 Fully enclosed free standing 3ph 415V 0…470V 15 Amps 12210VA 240 310 560 51.5
  • 20P-3* Fully enclosed free standing 3ph 415V 0…470V 20 Amps 16280VA 240 310 560 59.0
  • 28P-3 Fully enclosed free standing 3ph 415V 0…470V 28 Amps 22790VA 240 400 630 86.0
