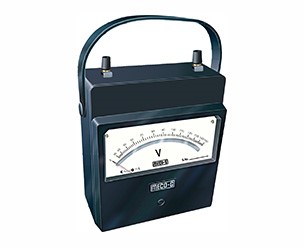

AC Voltmeters

AC Voltmeters:

Range 1

0-30V,0-50V,0-60V,0-75V,0-100V,0-125V
0-150V,0-250V,0-300V,0-500V,0-600V

Range 2

0-30/60V,0-50/100V,0-62.5/125V
0-75/150V,0-125/250V,0-150/300V
0-250/500V,0-300/600V

Range 3

0-30/60/120V,0-75/150/300V,0-62.5/125/250V
0-125/250/500V,0-150/300/600V

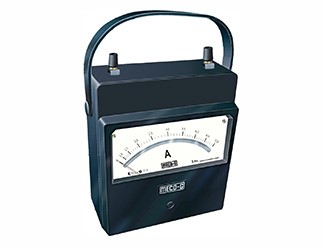

AC Ammeters

AC Ammeters

Range 1

0-50mA,0-100mA,0-250mA,0-500mA,0-1A
0-2A,0-5A,0-10A,0-20A,0-30A,0-50A,0-100A

Range 2

0-1/2A,0-2.5/5A,0-5/10A,0-10/20A
0-15/30A,0-25/50A,0-50/100A

A. SINGLE PHASE SINGLE ELEMENT: MODEL - SPW1 (PF=1.0)

Specifications

Current Ranges	Potential Ranges	Current Ranges Available (Any One)	Potential Ranges Available (Any One)
1	1	0.5, 1, 2.5, 5, 10A	150, 250, 300, 500, 600V
1	2	0.5, 1, 2.5, 5, 10A	75/150, 150/300, 250/500, 300/600V
1	3	0.5, 1, 2.5, 5, 10A	75/150/300, 125/250/500V, 150/300/600V
2	1	0.5/1, 1/2, 2.5/5, 5/10, 10/20, 15/30A	100, 150, 250, 300, 500, 600V
2	2	0.5/1, 1/2, 2.5/5, 5/10, 10/20, 15/30A	50/100, 75/150, 125/250, 150/300, 250/500, 300/600V
2	3	0.5/1, 1/2, 2.5/5, 5/10, 10/20, 15/30A	62.5/125/250, 75/150/300, 125/250/500V, 150/300/600V

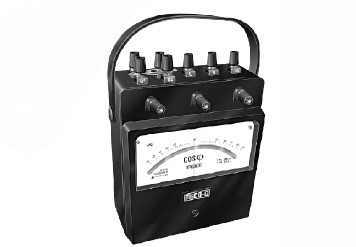

B. SINGLE PHASE SINGLE ELEMENT LOW POWER FACTOR: MODEL - SPLW (PF=0.2)

Specifications

Current Ranges	Potential Ranges	Current Ranges Available (Any One)	Potential Ranges Available (Any One)
1	1	0.5/1, 1/2, 2.5/5, 5/10, 10/20, 15/30A	62.5/125/250, 75/150/300, 125/250/500V, 150/300/600V

C. (3 Phase 3 Wire) DOUBLE ELEMENT FOR BALANCED & UNBALANCED LOAD: MODEL: DPW3 / DPVAR3

Specifications

Current Ranges	Potential Ranges	Current Ranges Available (Any One)	Potential Ranges Available (Any One)
1	1	0.5/1, 1/2, 2.5/5, 5/10, 10/20, 15/30A	62.5/125/250, 75/150/300, 125/250/500V, 150/300/600V
