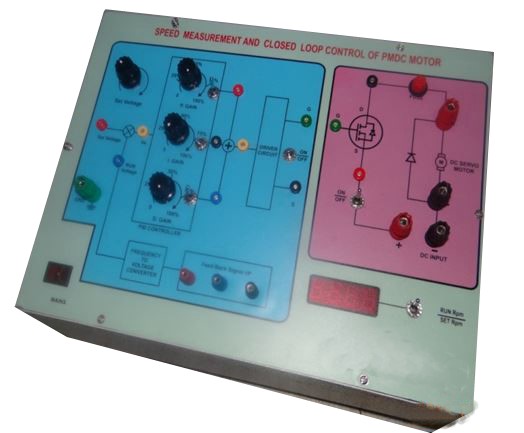

Speed Measurement and closed loop control using PMDC motor

MOSFET based PWM chopper drive for PMDC motor-24V/35 W /1500rpm with control circuit based on PID, MOSFET based power circuit, DC power supply unit, PMDC motor with mechanical loading arrangement and sensor for closed loop DC motor control and speed indicator.

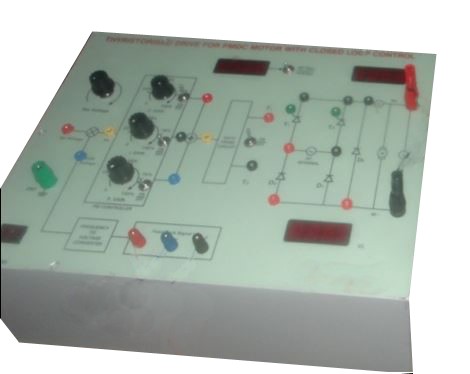

Thyristorised drive for PMDC Motor with speed measurement and closed Loop control

Thyristorised drive – 35W / 24V / 1500 rpm PMDC motor with control circuit using PID, power circuit, PMDC motor with loading arrangement, isolation transformer, sensor for closed loop control and speed indicator.

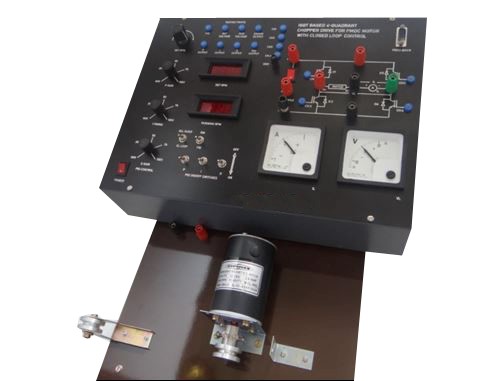

IGBT used single 4 quadrant chopper drive for PMDC motor with speed measurement and closed loop control

IGBT based Four quadrant PWM chopper drive for PMDC motor-24V/50 W / 1500rpm with control circuit, IGBT based power circuit, DC power supply, PMDC motor with mechanical loading arrangement and sensor for closed loop DC motor control.

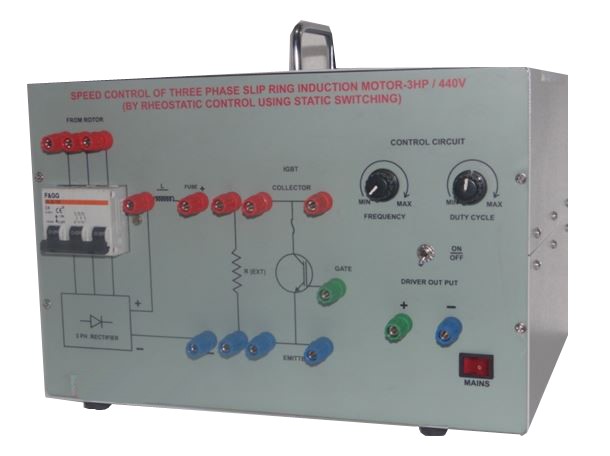

Speed control of 3 phase wound rotor Induction motor

Speed controller for 3 phase wound rotor motor using PWM chopper for rotor resistance control with 1 hp / 415 v slip ring inductions motor.

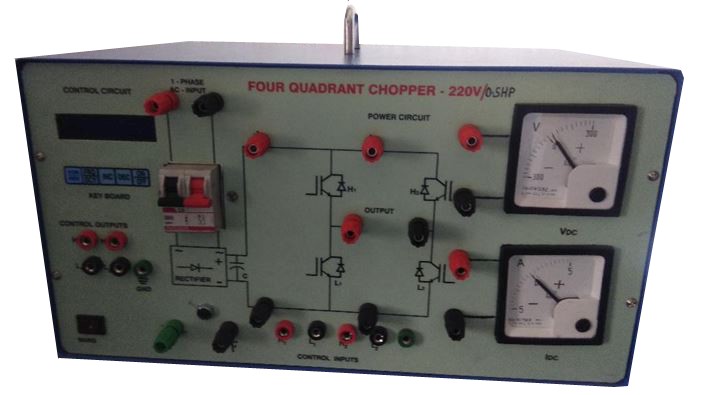

FOUR QUADRANT CONTROL OF DC MOTOR USING IGBT BASED H – BRIDGE

IGBT based 4 quadrant chopper – 220V DC /5Amps with buitin DC rectifier and capacitor filter. High speed Optoisolator based driver circuit.DSP/microcontroller based controller. DC motor – 220V DC/0.5 hp /1500 rpm. With mechanical loading arrangement.

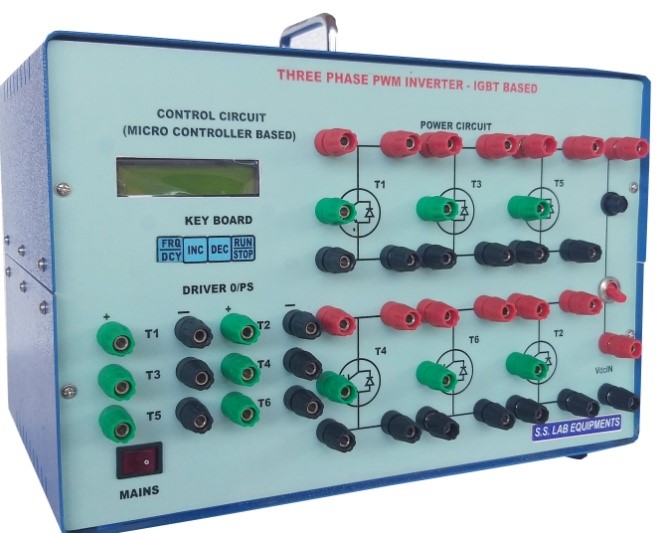

SPEED CONTROL OF 3 PHASE INDUCTION MOTOR USING IGBT BASED PWM INVERTER

Using 2 level VSI fed PWM inverter- IGBT based power circuit, dsp based controller with V/f control, High speed opto isolator with 0.5 hp/230V/1440 rpm squirrel cage induction motor and mechanical loading arrangement .

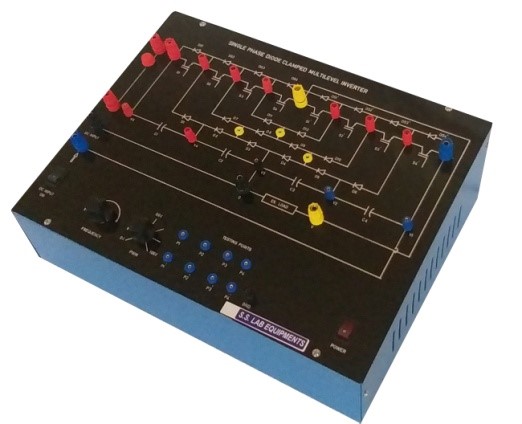

SPEED CONTROL OF 3 PHASE INDUCTION MOTOR USING IGBT BASED DIODE CLAMPED MULTILEVEL PWM INVERTER

Using 3 level diode clamped multilevel PWM inverter- IGBT based power circuit, dsp based controller with V/f control, High speed opto isolator with 0.5 hp/230V/1440 rpm squirrelcage induction motor and mechanical loading arrangement.

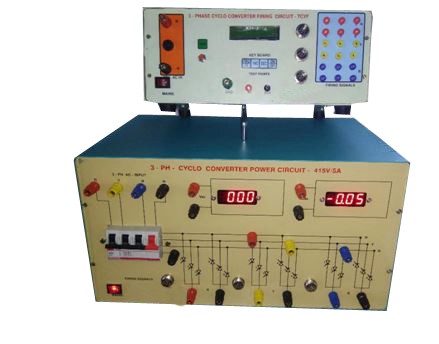

SPEED CONTROL OF 3 PHASE INDUCTION MOTOR USING 3-PHASE CYCLO CONVERTER

SCR based 3 phase cyclo converter – 415V/5Amps/3 phase with pulse transformer based driver circuit. Microcontroller based controller. 3 phase induction motor – 0.5 hp/415V/1440 rpm. With mechanical loading arrangement.

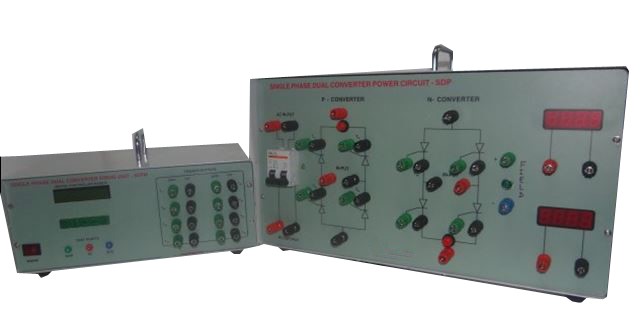

SPEED CONTROL OF DC MOTOR USING 1 – PHASE DUAL CONVERTER

SCR based 1 phase dual converter – 230V/5Amps/1 phase with pulse transformer based driver circuit. Circulatory current limiting inductor. Single phase isolation transformer. Microcontroller based controller.

DC motor – 0.5 HP/220V/1500 rpm. With mechanical loading arrangement.

SPEED CONTROL OF DC MOTOR USING 3 – PHASE DUAL CONVERTER

SCR based 3 phase dual converter – 415V/5Amps/3 phase with pulse transformer based driver circuit. Circulatory current limiting inductor. Three phase isolation transformer. Microcontroller based controller.

DC motor – 0.5 hp/220V/1500 rpm. With mechanical loading arrangement.

SPEED CONTROL OF 5 PHASE INDUCTION MOTOR USING IGBT BASED PWM INVERTER

IGBT based 5 phase PWM inverter – 230V/5Amps/5 phase with buitin DC rectifier and capacitor filter. High speed Optoisolator based driver circuit. TMS320F28F377S DSP based controller.

5 – phase induction motor - 230V/500 watts/1440 rpm. With mechanical loading arrangement.

3 PHASE, 4 LEG IGBT BASED INVERTER POWER MODULE WITH DRIVER CIRCUIT

Enables practical experimentation & makes your study of power electronics safer by preventing dangerous & expensive failures. Increases your demonstration time & reduces build up time. IGBT based demonstration Inverter for colleges & universities. Encapsulated assembly makes it easier for students working in power electronics laboratory and to study modern inverters without shock hazards. Various waveforms can be observed just by connecting CRO probes. This Inverter teaching kit is mainly designed for College students studying power electronics course and to help them have practical knowledge about IGBT based Inverter.
Specifications:

Input AC Voltage (VAC): 415 V 3-Φ
DC Voltage (VDC): 600 V DC Max.
Output AC Voltage (VAC): 415 V 3-Φ (Controlled)
Output Current (IAC) - 30 A Max @ 2 kHz
Output Frequency - 50 Hz
Switching Frequency (Fsw) - 20 kHz
Max Ambient Temperature (Tamb) - 40 Deg C.
Cooling Method - Force Air Cooled

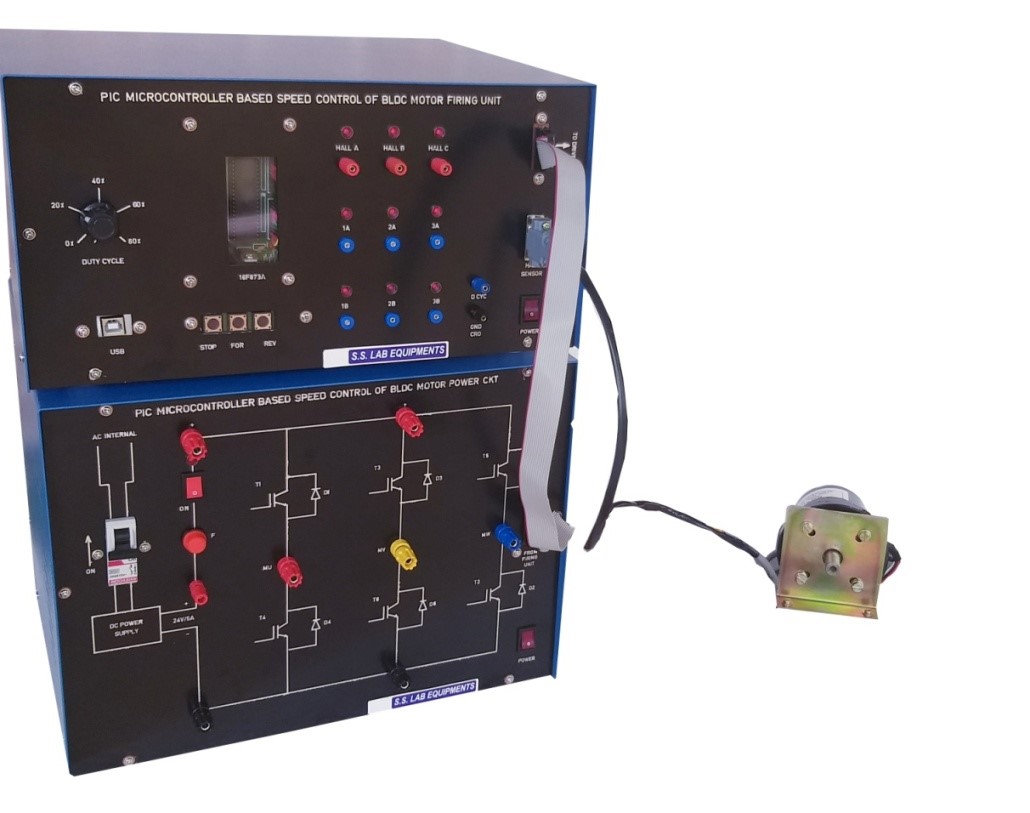

SPEED CONTROL OF BLDC MOTOR USING IGBT BASED PWM INVERTER

IGBT based 3 phase PWM inverter – 230V/5Amps/3 phase with buitin DC rectifier and capacitor filter. High speed Optoisolator based driver circuit. TMS320F28F377S DSP based controller. BLDC motor – 220VDC/500 watts/1500 rpm. With mechanical loading arrangement.

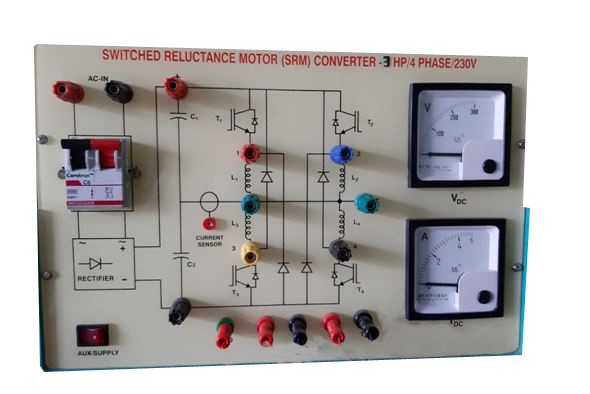

SPEED CONTROL OF SRM MOTOR USING IGBT BASED POWER CIRCUIT

IGBT based SRM controller power circuit – 230V/5Amps with buitin DC rectifier and capacitor filter. High speed Optoisolator based driver circuit. TMS320F28F377S DSP based controller. Switched reluctance motor – 4 phase motor with 2 hall sensors - 310VDC/500 watts/2000 rpm (No load) With mechanical loading arrangement.

SPEED CONTROL OF PMSM MOTOR USING IGBT BASED PWM INVERTER

IGBT based 3 phase PWM inverter – 230V/5Amps/3 phase with buitin DC rectifier and capacitor filter. High speed Optoisolator based driver circuit. TMS320F28F377S DSP based controller. Permanent magnet Synchronous motor with Hall sensors - 310VDC/500 watts/2000 rpm. With mechanical loading arrangement.

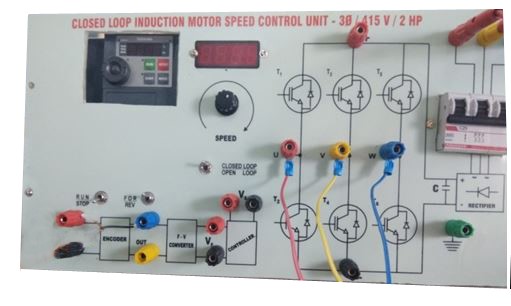

Closed loop speed control of 3-phase Induction motor :-(2HP, 415 V)

This setup consists of Toshiba/Fuji make 3Phase AC drive. 2H.P./1440 RPM /3Ph. Squirrel cage induction motor with mechanical loading arrangement and Encoder fitted to the induction motor shaft for speed sensing for closed loop operation with encoder interface card(F to V card)

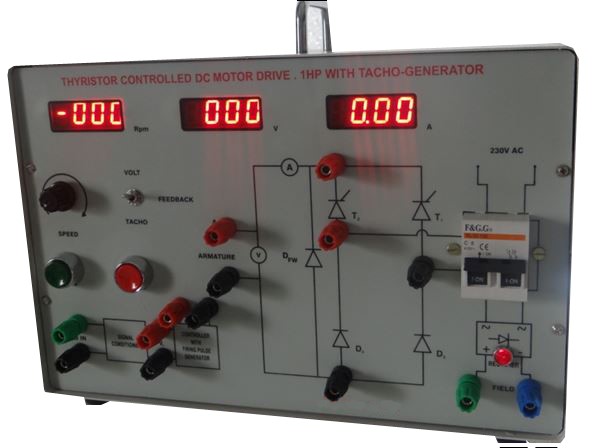

Thyristor controlled D.C. motor drive with tacho-generator feedback arrangement-1 HP

A) Thyristor controlled rectifier for speed control of DC motor

Armature and tachofeed back
Over current protection.
Voltmeter and Ammeter to measure Armature Voltage and Current
Calibrated meter to indicate rpm directly
Closed loop system works for speed range from 200-1000rpm
Mains operated

B)DC shunt motor – 1HP/220V/1500 rpm with mechanical loading arrangement and with Tachogenerator coupling for tachofeed back

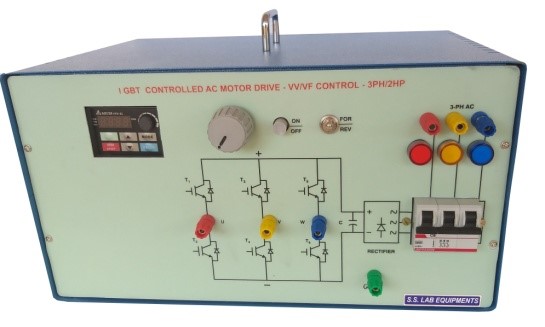

IGBT controlled VVVF AC drive suitable for 3Ph./2HP/ 415V induction motor

This unit consists of DELTA make IGBT based 3-ph V/F drive Suitable for 2HP/415V induction motor . The AC 3 phase input terminals, motor output terminals points are brought out on the front panel.
A 3pole / 10Amps MCB is provided to switch ON/OFF the AC mains supply to the unit and also for protection.
The drive has the facility to change the frequency with constant V/F(Variable voltage variable frequency) to vary the speed of the induction motor since the speed is directly proportional to the frequency.
The drive has the facility to read the input voltage, output voltage, output current, and frequency.

Accessories:-

a)Three phase squirrel cage Induction motor - 2HP / 415V / 1440 rpm with mechanical loading.
b) Digital tachometer.
