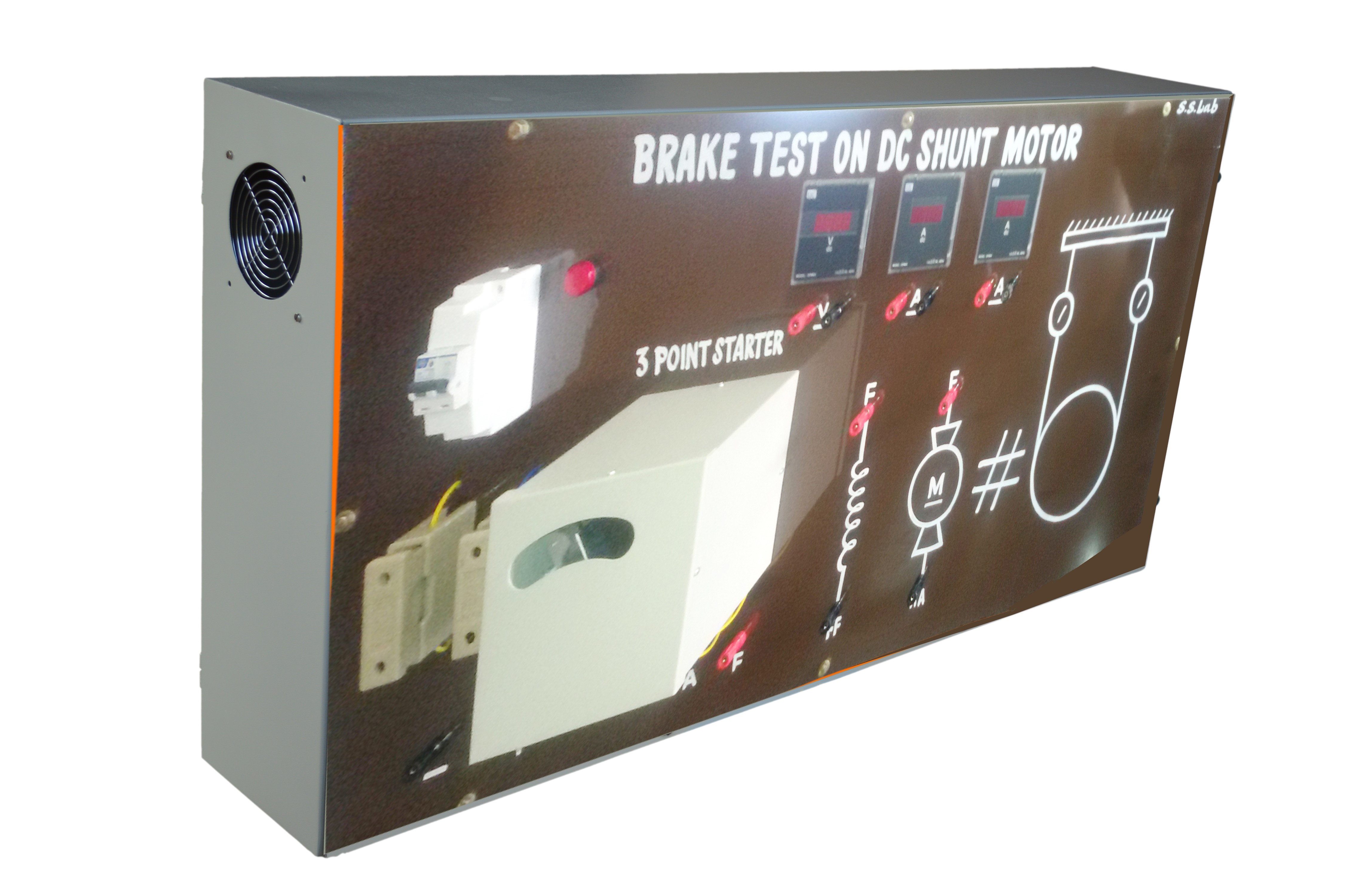

BREAK TEST (LOAD TEST) ON DC SHUNT MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter Voltmeter: 0-300V-01No, DC Ammeter 0-20A-2No and wiring.etc Optional equipment Rheostates:300Ω/1.2A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor With Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement

BREAK TEST (LOAD TEST) ON DC COMPOUND MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 4 Point Starter DC Voltmeter:0-300V-01No,DC Ammeter 0-20A-2No and wiring.etc Optional equipment Rheostates:300Ω/1.2A MACHINES: 5 HP / 220 V / 1500 RPM / DC compound Motor With Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC compound Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement

SEPARATION OF LOSSES IN A DC SHUNT MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter: 0-300V-01No, DC Ammeter 0-20A-2No and wiring.etc Optional equipment Rheostates: 300Ω/1.2A Rheostates: 150Ω/5A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement. (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement

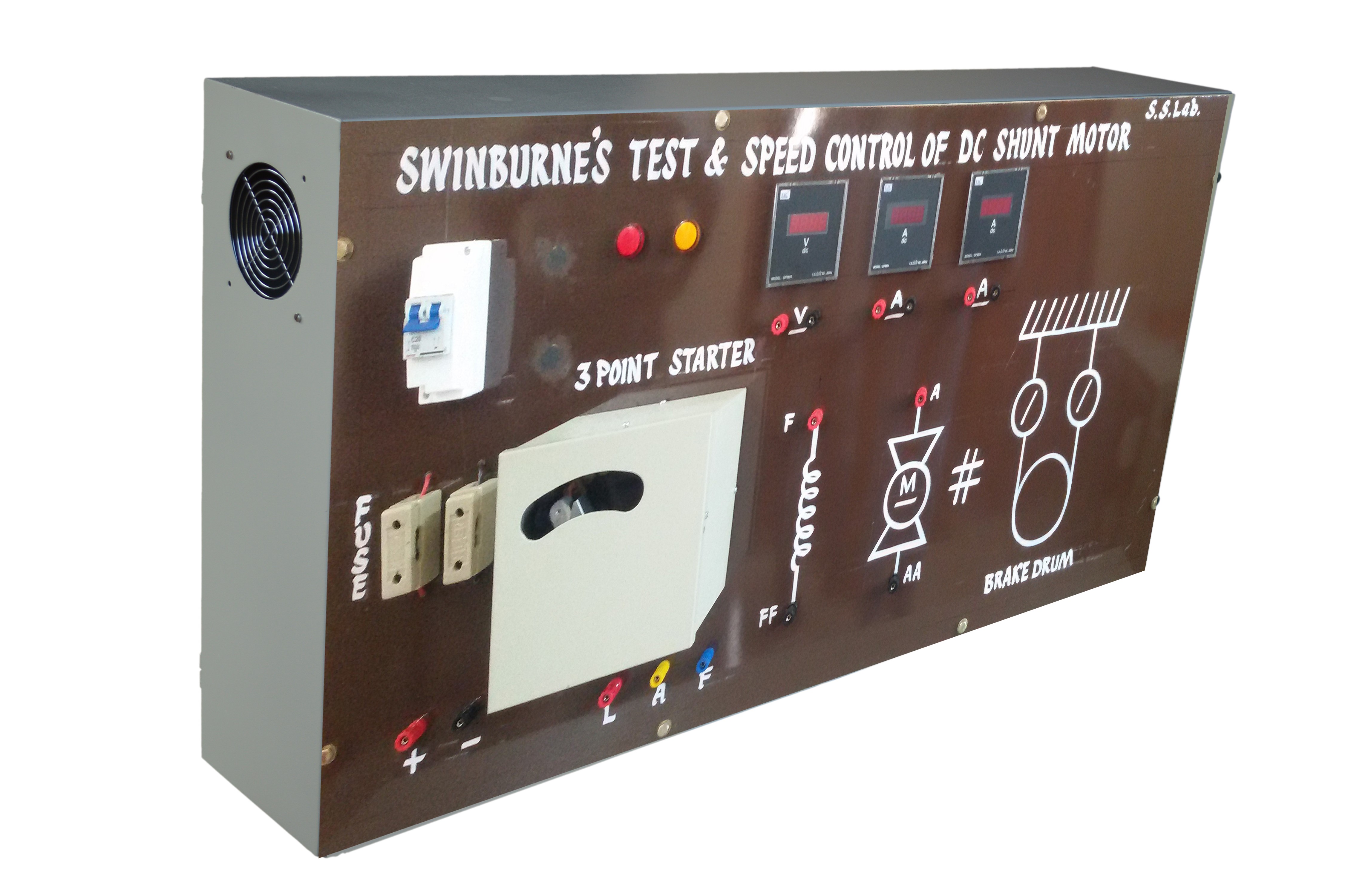

SWINBURNES TEST AND SPEED CONTROL OF DC SHUNT MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter: 0-300V-02No, DC Ammeter 0-20A-2No and wiring.etc Optional equipment Rheostates: 300Ω/1.2A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor With Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement

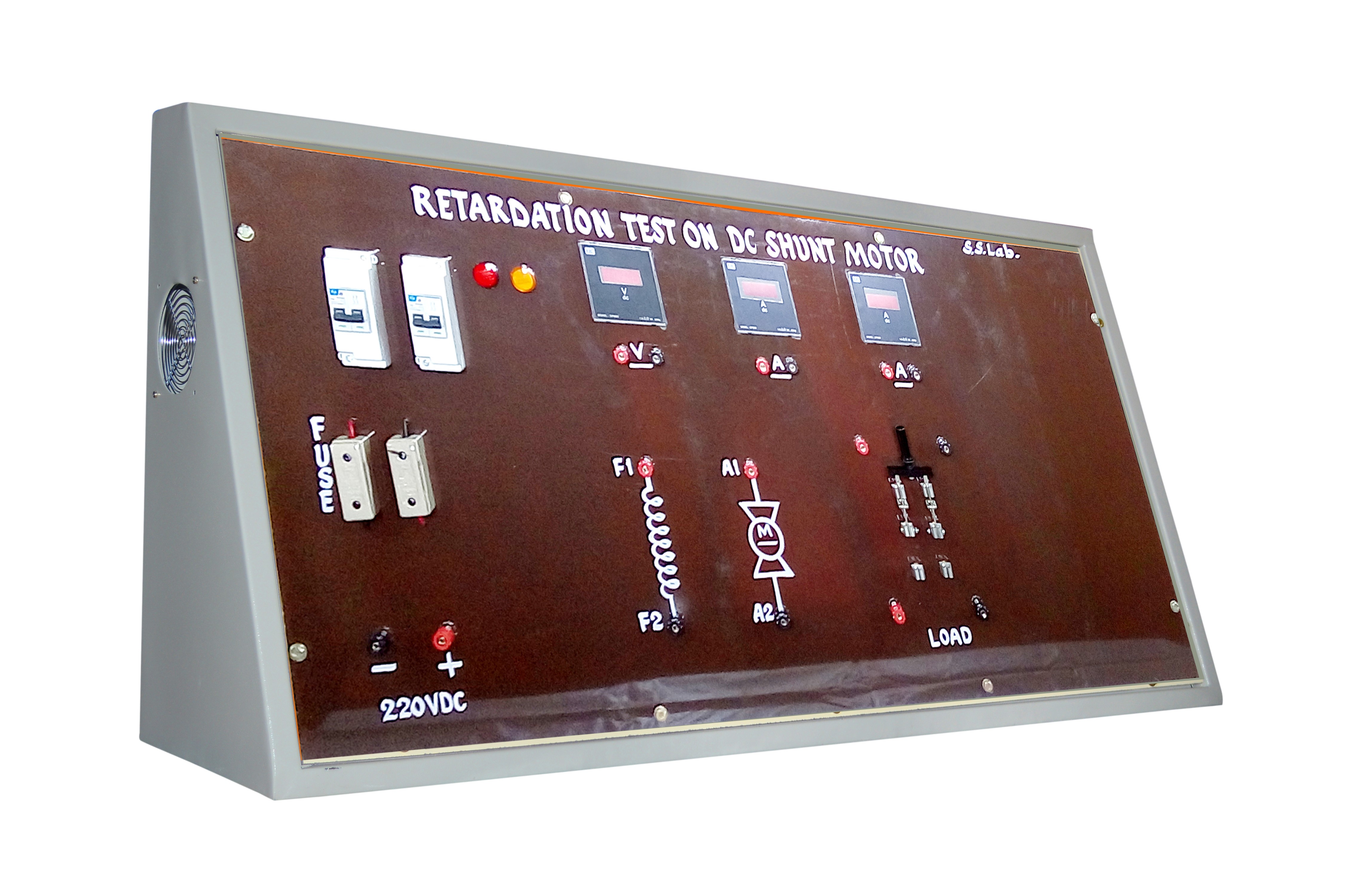

RETARDATION TEST ON DC SHUNT MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter:0-300V-01No,DCAmmter 0-20A-2No and wiring.etc Optional equipment Rheostates: 300Ω/1.2A Rheostat 150ohm/5A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor with Fly wheel mounted on the shaft of Motor (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor with Fly wheel mounted on the shaft of Motor

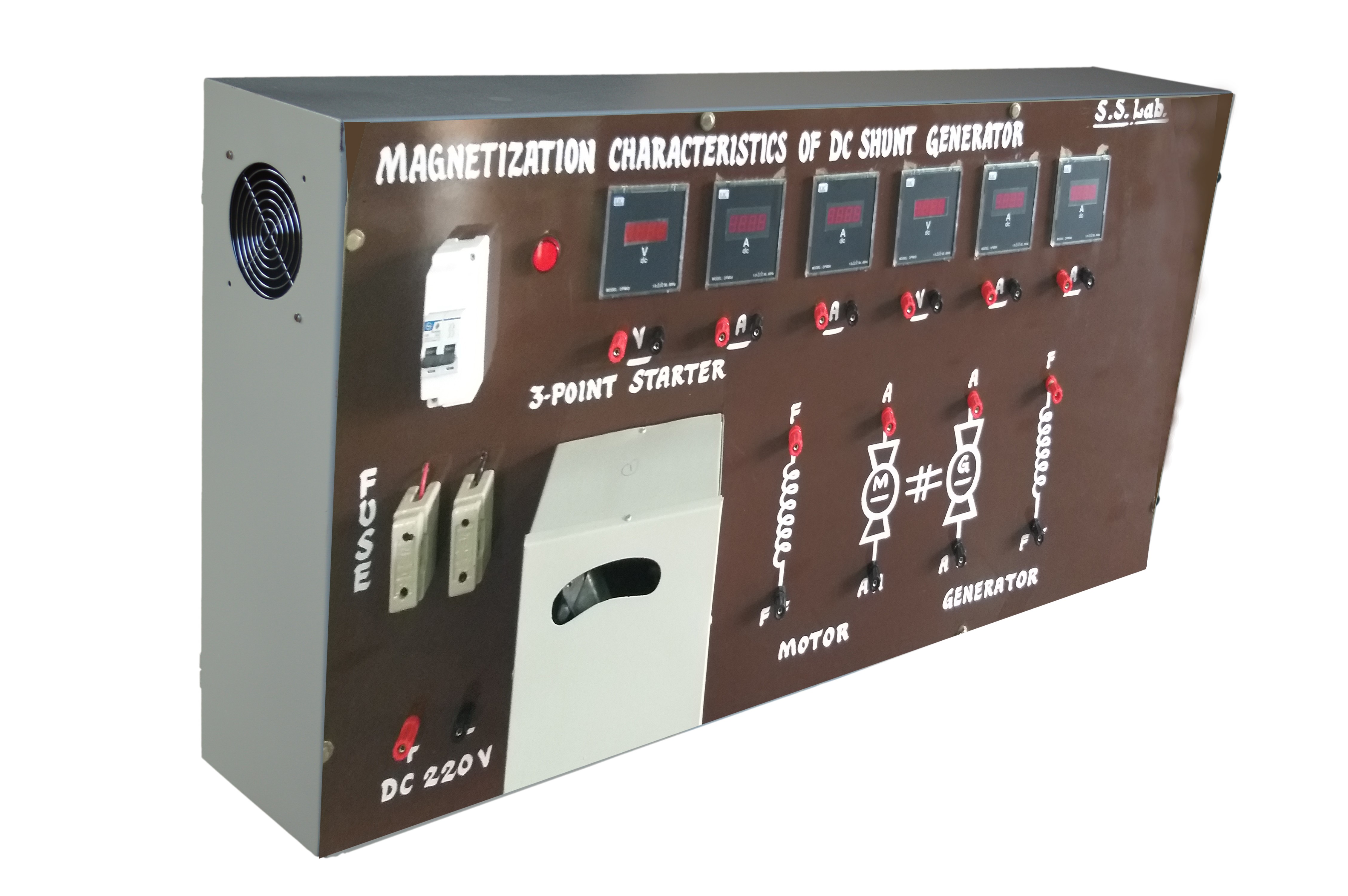

MAGNETIZATION CHARACTESTICS OF DC SHUNT GENERATOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter: 0-300V-02No, DCAmmter 0-20A-3No and wiring.etc Optional equipment Rheostates: 300Ω/1.2A Rheostates: 300Ω/1.7A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 3 KW /220 V / 1500 RPM Shunt Generator with base and coupling (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 1.8 KW/ 220 V / 1500 RPM Shunt Generator with base and coupling.

BREAK TEST (LOAD TEST) ON DC SERIES MOTOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 2 Point StarterDC Voltmeter:0-300V-01No, DCAmmter 0-20A-2No and wiring.etc Optional equipment MACHINES: 5 HP / 220 V / 1500 RPM / DC Series Motor With Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Series Motor with Mechanical Loading arrangement having Round dial scales and Friction Belt for Torque Measurement

LOAD TEST ON DC SHUNT GENERATOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter:0-300V-02No, DC Ammeter 0-20A-4No and wiring.etc Optional equipment 1Ph.@20A Resistive load bank, 10Steps Rheostates: 300Ω/1.7A Rheostates: 300Ω/1.2A MACHINES:5 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 3 KW /220 V / 1500 RPM Shunt Generator with base and coupling (OR) MACHINES:3 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 1.8 KW/ 220 V / 1500 RPM Shunt Generator with base and coupling.

LOAD TEST ON DC SERIES GENERATOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter: 0-300V-02No, DC Ammeter 0-20A-3No and wiring.etc Optional equipment 1Ph.@20A Resistive load bank, 10Steps Rheostates: 300Ω/1.7A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 3 KW /220 V / 1500 RPM Series Generator with base and coupling (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 1.8 KW/ 220 V / 1500 RPM Series Generator with base and coupling.

LOAD TEST ON DC COMPOUND GENERATOR

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter:0-300V-02No,DC Ammeter 0-20A-4No and wiring.etc Optional equipment 1Ph.@20A Resistive load bank, 10Steps Rheostat: 300Ω/1.7A Rheostat: 300Ω/1.2A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 3 KW /220 V / 1500 RPM compound Generator with base and coupling (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 1.8 KW/ 220 V / 1500 RPM compound Generator with base and coupling.

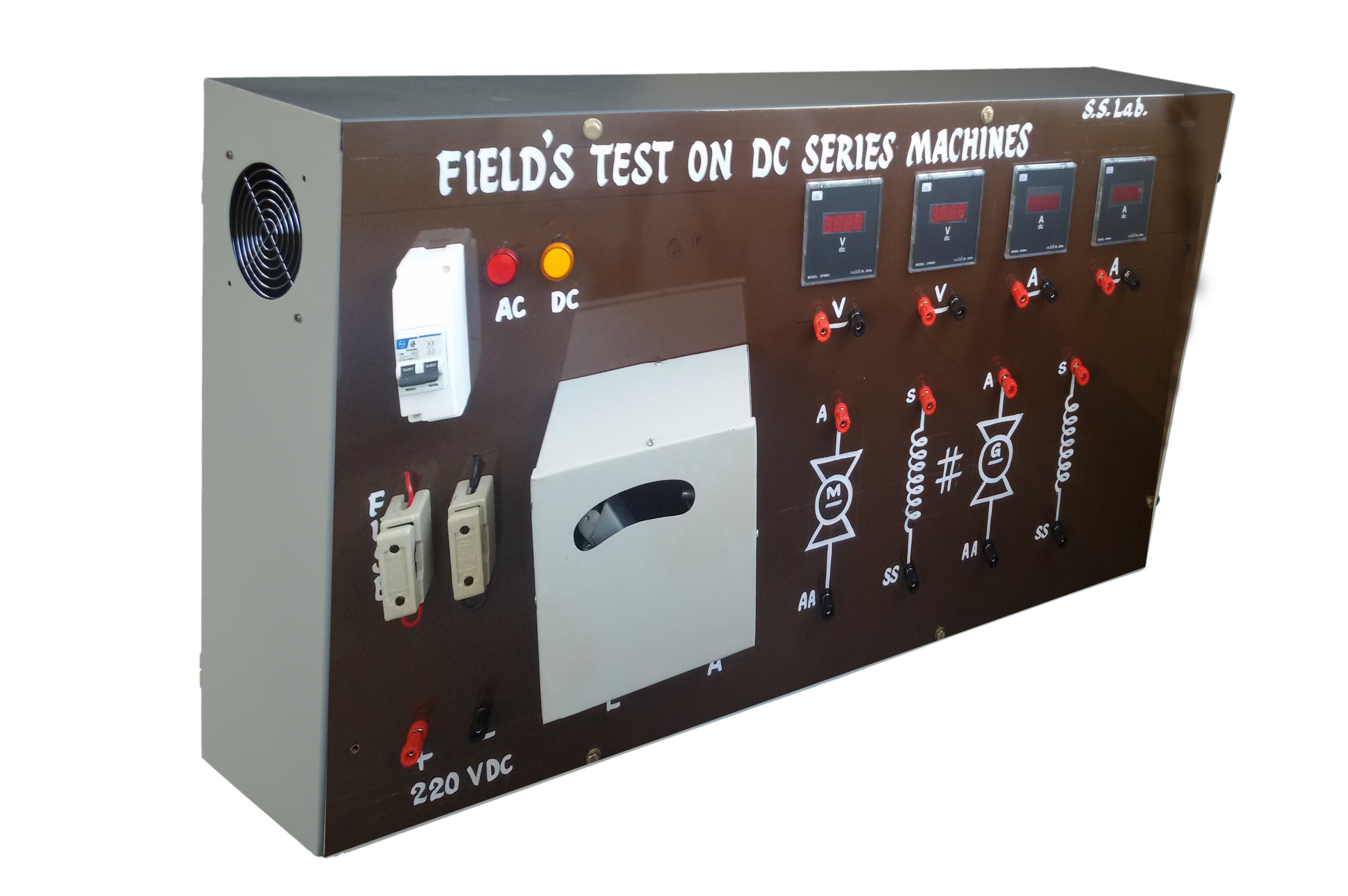

FIELD’S TEST DC SERIES MACHINES

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter: 0-300V-02No, DC Ammeter 0-20A-2No and wiring.etc Optional equipment 1Ph.@20A Resistive load bank, 10Steps Rheostats: 300Ω/1.7A Rheostats: 300Ω/1.2A MACHINES: 3 KW / 220 V / 1500 RPM / DC Series Identical Machines coupled with each other with base and coupling. (OR) MACHINES: 2 KW / 220 V / 1500 RPM / DC Series Identical Machines coupled with each other with base and coupling.

HOPKINSON’S TEST ON DC SHUNT MACHINES

This control panel consists of  Closed Box Type Panel size 2ftX4ft consists of MCB, Fuses, Indicators, Binding posts, 3 Point Starter DC Voltmeter:0-300V-02No,DC Ammeter 0-20A-4No and wiring.etc Optional equipment 1Ph.@20A Resistive load bank, 10Steps Rheostats: 300Ω/1.7A Rheostats: 300Ω/1.2A MACHINES: 5 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 3 KW /220 V / 1500 RPM Shunt Generator with base and coupling (OR) MACHINES: 3 HP / 220 V / 1500 RPM / DC Shunt Motor coupled to 1.8 KW/ 220 V / 1500 RPM Shunt Generator with base and coupling.
