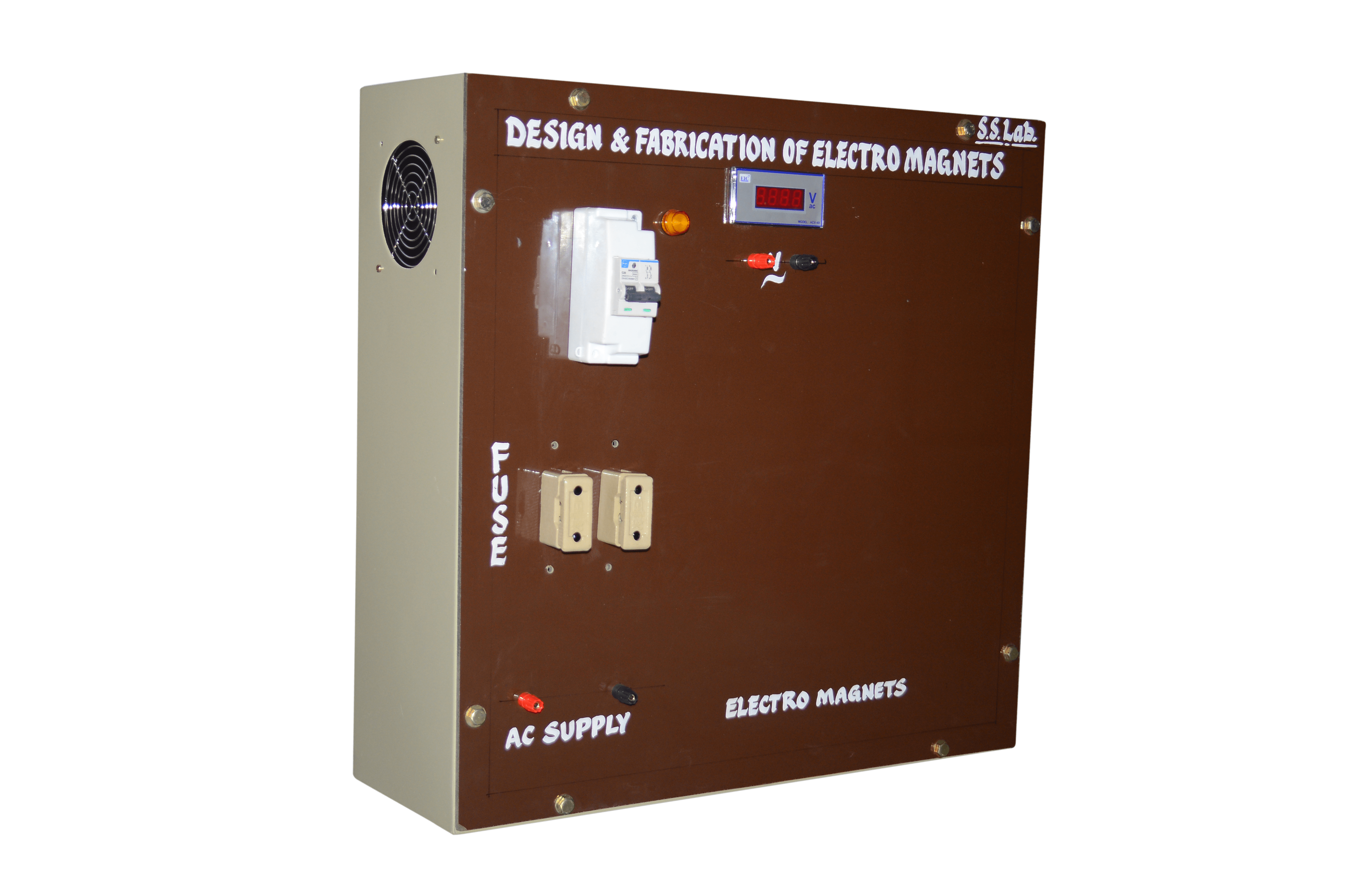

Design & fabrication of Electro Magnet for Different Inductance values

Specifications:
  • Consists of a panel Close type with front Hylemsheet
  • Panel size 2feet x 2feet x.200mm depth
  • Hand Held Digital LCR Meter to measured Inductance
  • Different Electro Magnetic Coils 3 Nos. Copper Wound
  • AC Digital Voltmeter Panel mounted type
  • AC Digital Ammeter panel mounted type
  • Neon Indications-LED, Terminals. BTI-15 /Patch Cods /Fuses
    • Optionals::
  • Basic Coil Winding Machine

Design & Fabrication of single Phase Inductance motor& sartor

Specifications:
  • Consists of Panel Closed a type with front Hylemsheet, Panel Size 2feet x 2feet x200mm depth .
  • 1HP Cut section type induction motor
  • Single Phase Dimmer stator
  • AC Digital Voltmeter panel mounted type
  • AC Digital Ammeter Panel mounted type
  • MCB, Neon Inductions –LED, Terminals BTI-15
  • Patch Cords with Fuse control
    • Optionals:
  • Motor Coil Winding Machine
  • 0.5hp,1Ph.Induction Motor
  • 0.5hp,3Ph.Induction Motor.

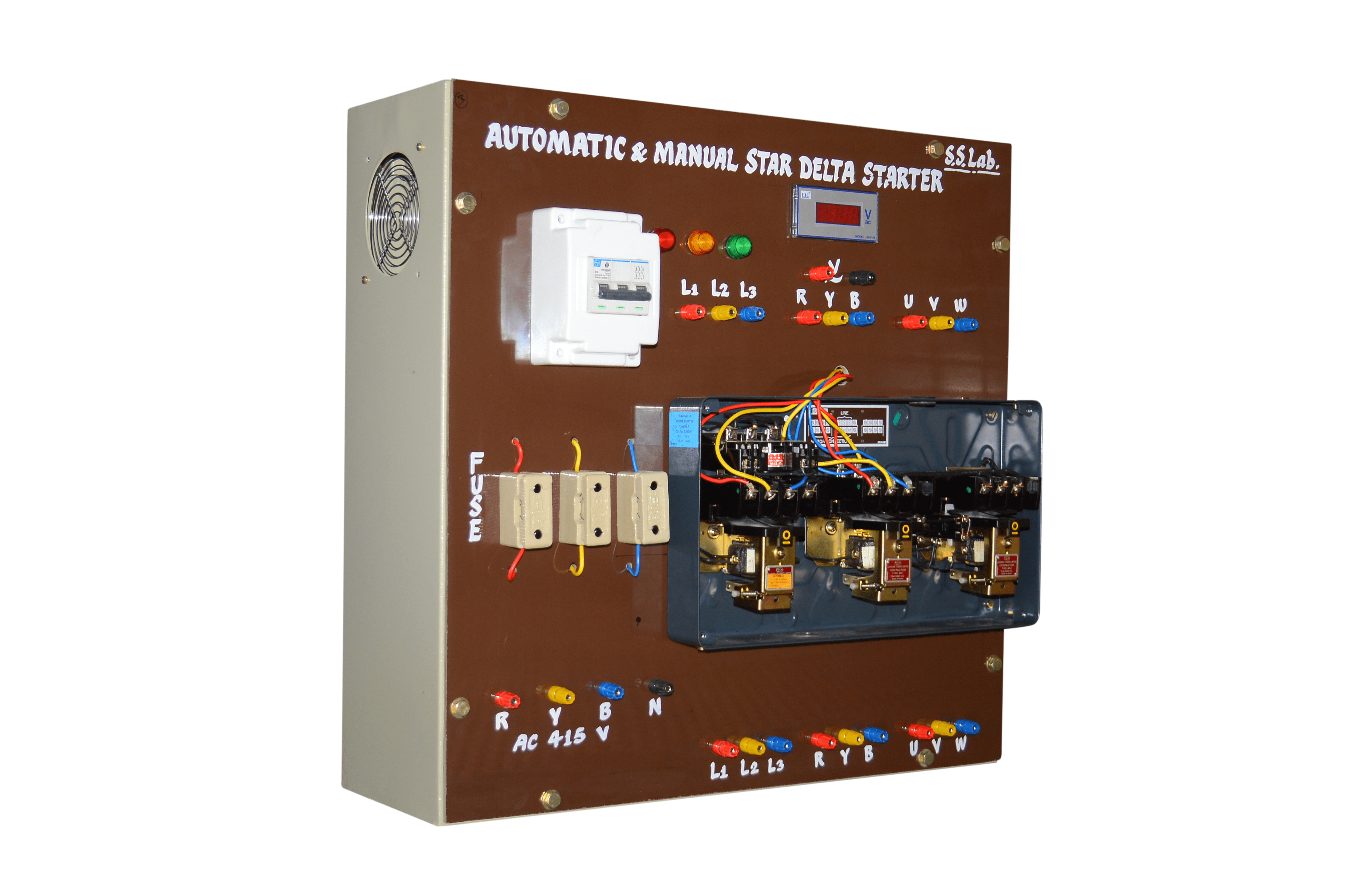

Star Delta Starter wiring for automatic and manual opearation

Specifications:
  • Consists of a panel closed type with front Hylam sheet
  • Panel Size 2ft height x 2ft width x 200mm depth.
  • 16 amps contactor ,On/Off Push Buttons
  • AC digital Voltmeter panel mounted
  • MCB, Neon Indicators –LED, Terminal BTI-15,Patch cards with Fuse control
    • Optionals:
  • 0.5hp, 3Ph.Induction Motor.
  • Timer

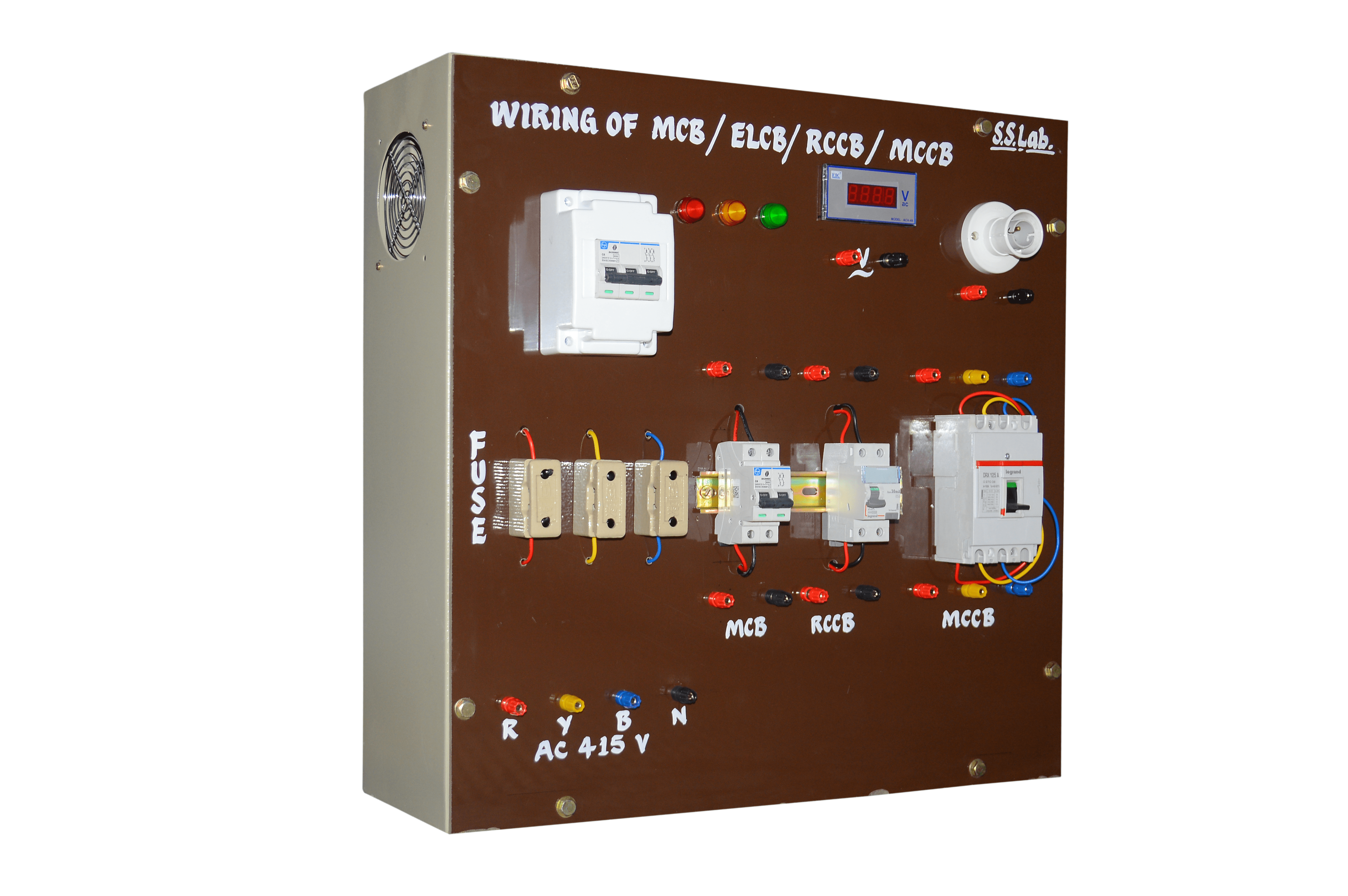

Wiring of Distribution Box with MCB/ELCB/RCCB/MCCB

Specifications:
  • Consists of a panel closed type with front Hylam sheet
  • Panel Size 2ft height 2ft width x200,mm depth
  • MCB 2 Pole-/ELCB-2Pole /RCCB-2Pole/MCCB-each one
  • AC Digital Voltmeter panel mounted type
  • MCB,Neon Inductions-LED.Terminals.BTI-15
  • Patch Cords.Fuse

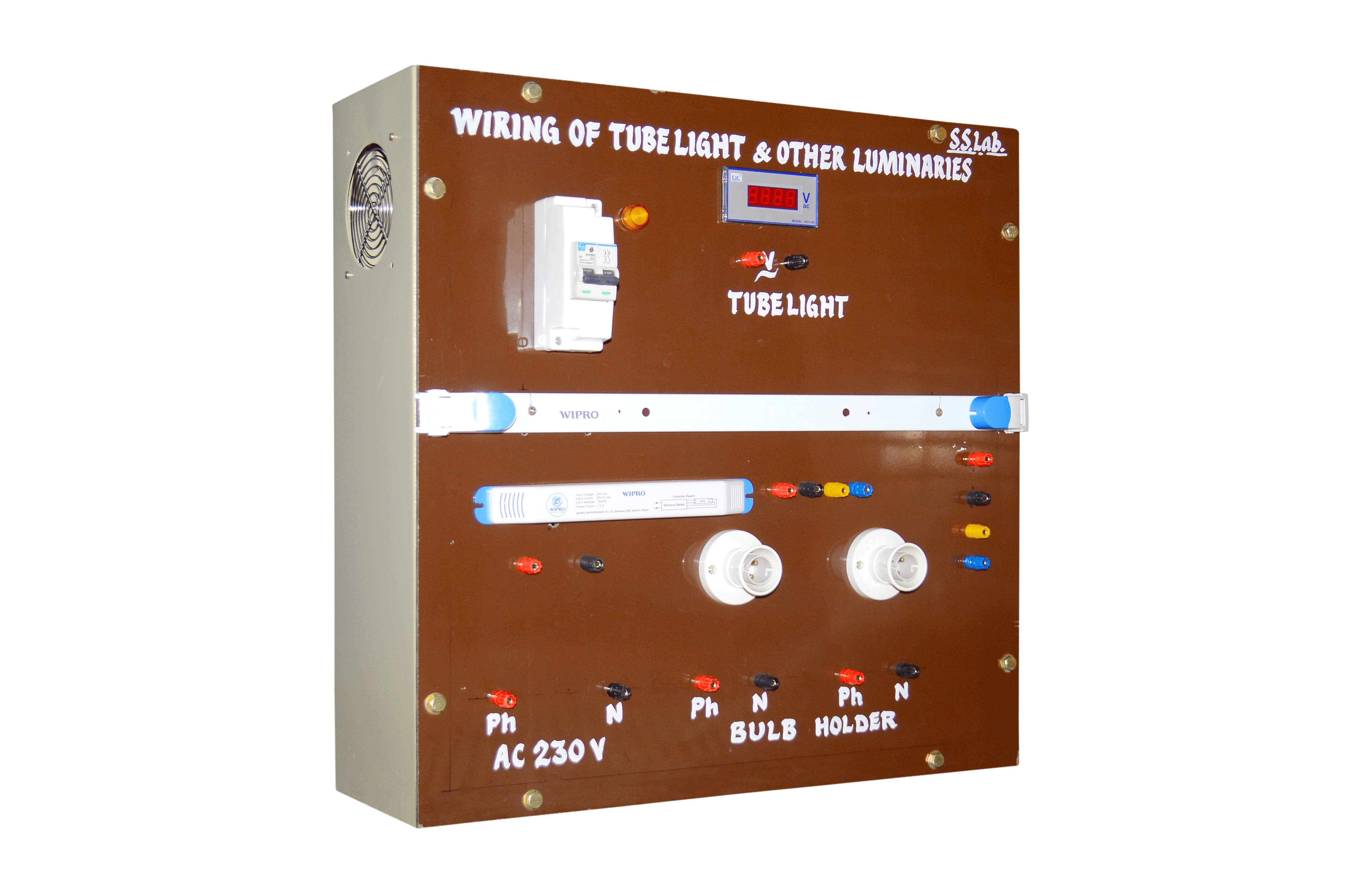

Wiring of Tube,Bulbs, LED and Luminaries

Specifications:
  • Consists of a panel closed type with front Hylam Sheet.
  • Panel Size 2ft height x2t width x 200mm depth
  • Tube-1No,LED Bulb-1No,CFL Bulb-1No
  • AC Digital Voltmeter
  • MCB,Neon Inductions –LED. Terminals BTI-15.Patch Cords.Fuse
    • Optionals:
  • MCB/RCCB/ELCB/MCCB
  • Resistive Load bank@20A
  • Tube light with chock and starter

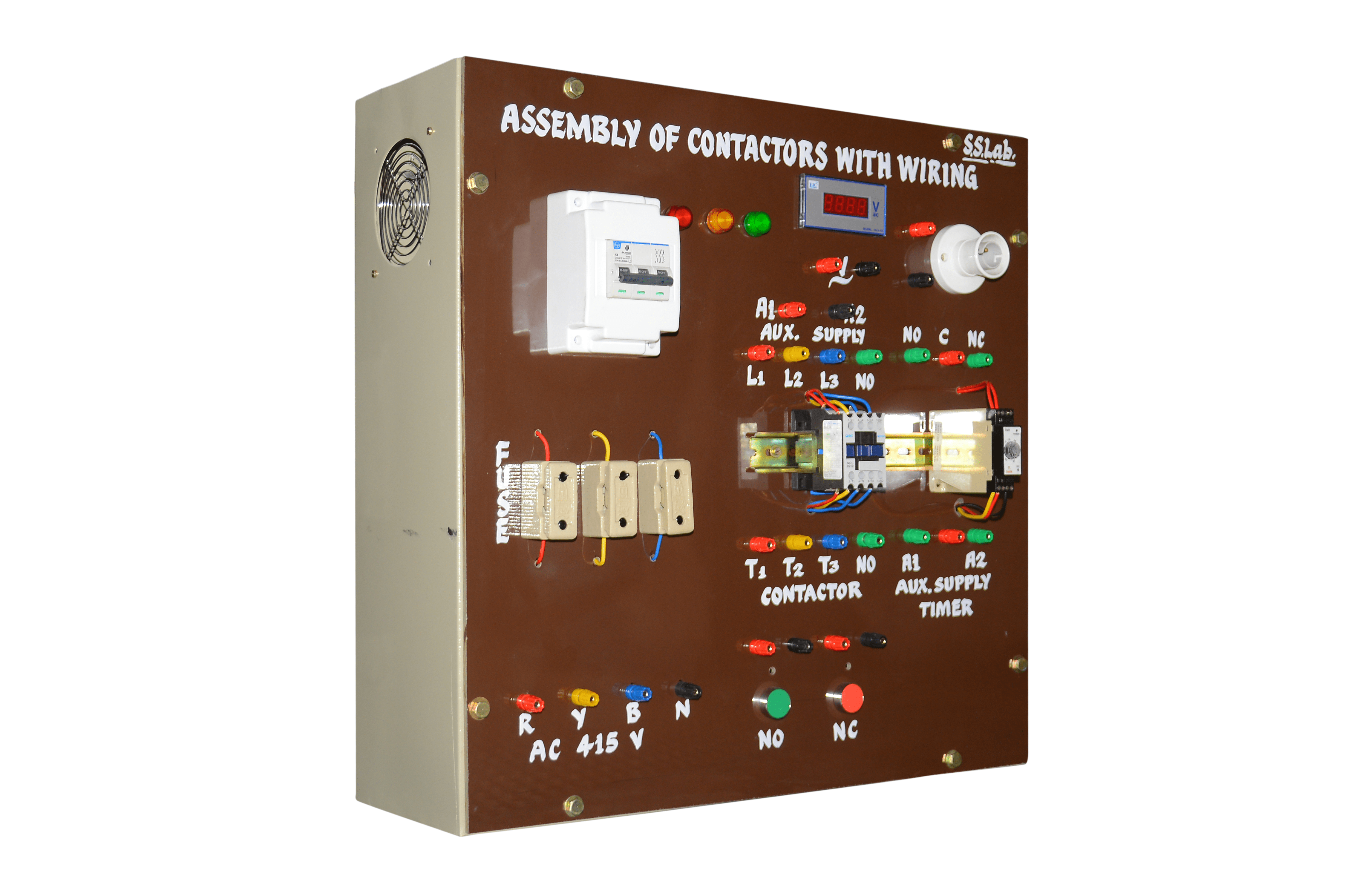

Assembly of contactors with wiring

Specifications:
  • Consists of a panel closed type with front Hylam Sheet
  • Panel Size 2ft height x2ft width x 200mm depth
  • 16amps contactor
  • Push to ON,Push to off buttons.
  • AC Digital Voltmeter panel mounted type
  • MCB,Neon Inductions –LED. Terminals BTI-15.Patch Cords.Fuse
    • Optionals:
  • 3 pole Contactor
  • Timer

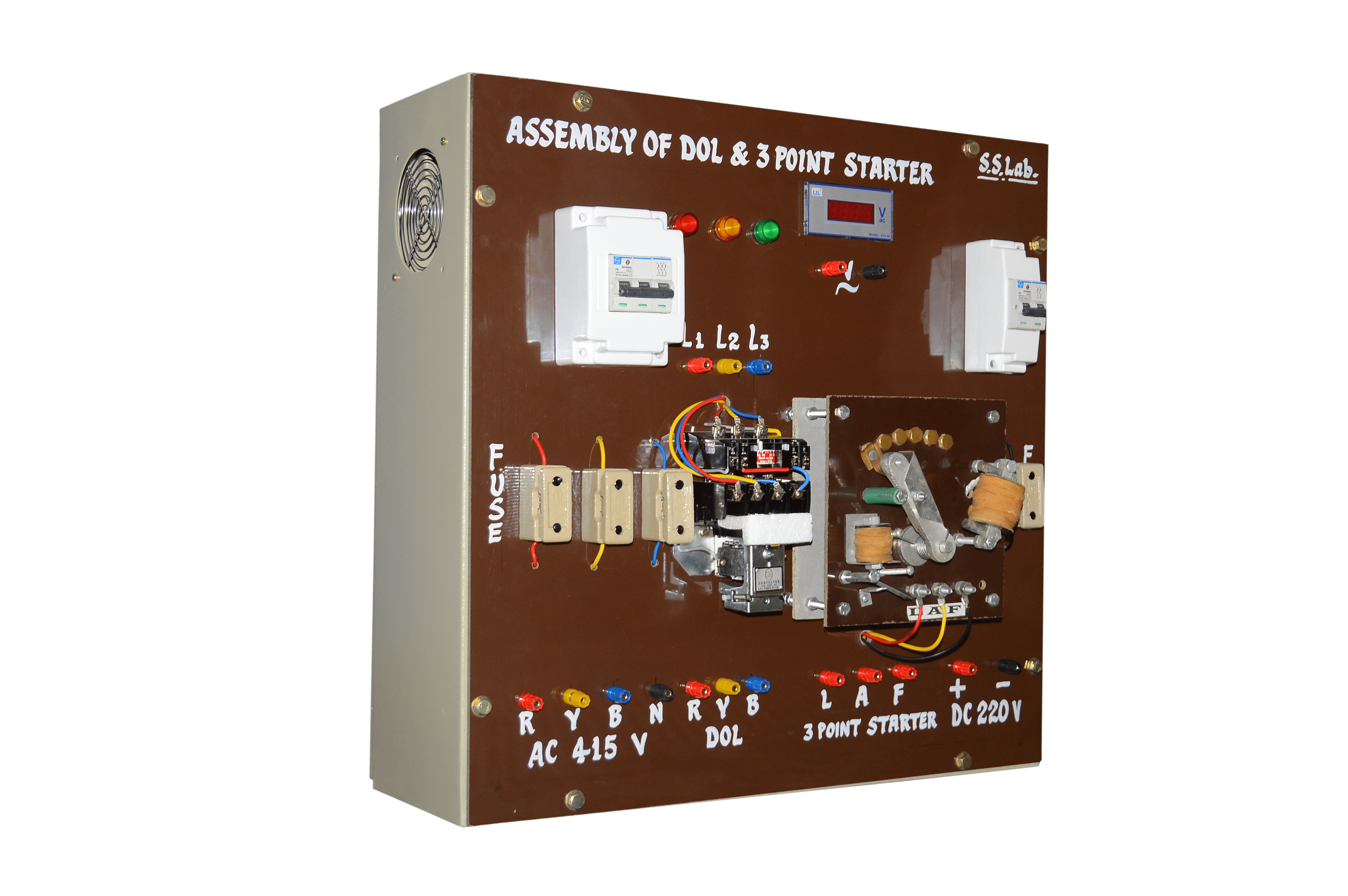

Assembly of DOL & 3Point Starter with NVC Connections and over load protection

Specifications:
  • Consists of a panel closed type with front Hylam Sheet
  • Panel Size 2ft height x2ft width x 200mm depth
  • 16amps contactor
  • Push to ON,Push to off buttons.
  • 3PPoint Starter
  • AC Digital Voltmeter panel mounted type
  • MCB,Neon Inductions –LED. Terminals BTI-15.Patch Cords.Fuse
    • Optionals:
  • 0.5hp,3Ph.Induction Motor.
  • 0.5hp,DC Shunt Motor
