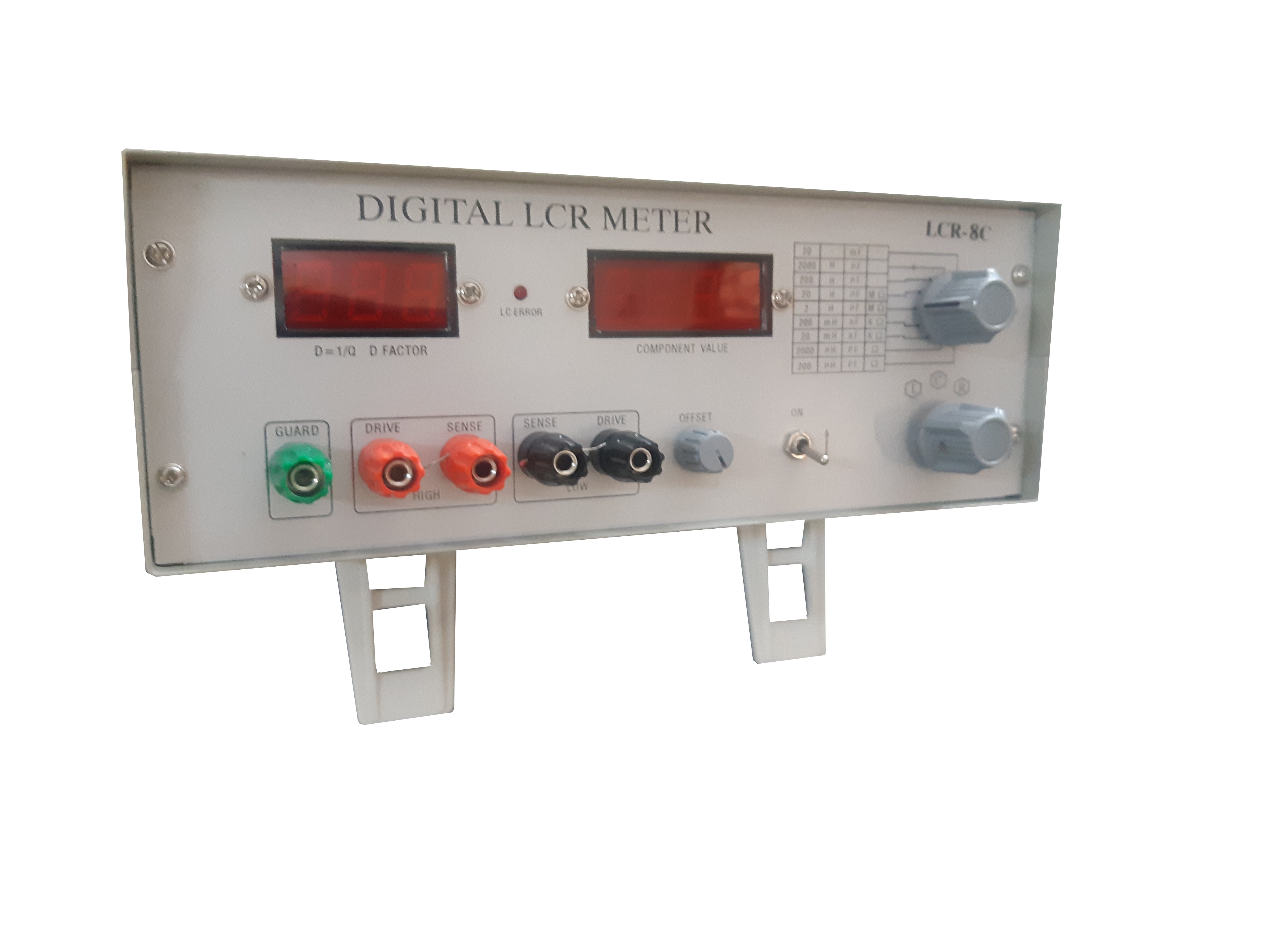

Features:

• READ OUT: 5.5 digit LED
  Inductance: 0-2000 H in(8 ranges) Capacitance: 0-20,000 in ufd(9 ranges)
  Resistance: 0-20 meg Ohm(6 ranges)
  RESOLUTION: 0.1 uH/PF/ohm
  ACCURACY : 1 KHz for L & C up to 2 uFD
  100Hz. For L & C above 2H2 µf DC for RES
  COMOPLIANCE STRESS OR V/A BRDEN: 1 V pp AC/ 1V DC/4 ma DC
  DISSIPATION FACTOR OR Q EMITOR: Provided
  FOUR TERMINAL SESING : Provided
  GUARD TERMINAL : Provided
  EFFECT OF Q/D: Within accuracy For Q>0.5
  EXTERNAL BIAS FOR POLARISATION OF CAPACITANCE: Applicable
  POWER : 230V +/- 10% 50Hz.
  DIMESSIONS (mm):100H x 250 w x 22 5D
  WEIGHT: Less than 3 kgs
  STANDARD ACCESSORIES: Kelvin Clips,Manual

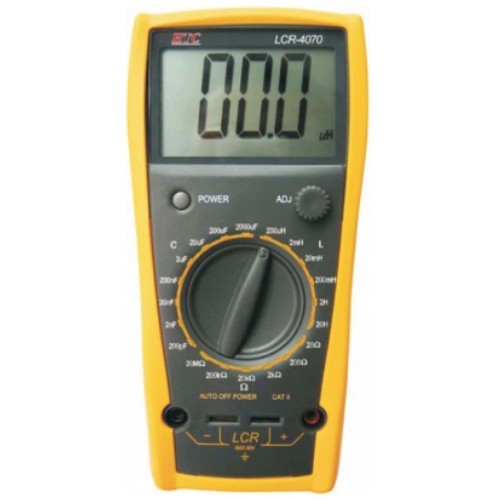

2-1.GENERAL CHARACTERISTICS:

• Dislay : LCD Display,Max1999
• Inductance Measure : 0.1µH~20
• Capacitence Measure : 0.1pF~2000µF
• Resistance Measure : 0.01~20MΩ
• Zero adjust : Capacitance Under 20nF is manual ministrant display”1”
• Low Battery Indication : Symbol Display
• Sampling Rate : 0-5s
• Working Temperature : 0~40oC
• Relative Humidity : Less than 80%
• Meter Size : 185mmX93X35mm (length x width x Height) Weight: Approx.290g (Including Battery
• : One 9V battery (6F 22 or Equivalent)
• Standard accessories :Test leads, Operation manual
• 2-2. Electrical Characterisitics
• Accuracy:± (% of reading + number of digit) at 23± 50C, Relative humidity<75%. One year guarantee since production date. .
