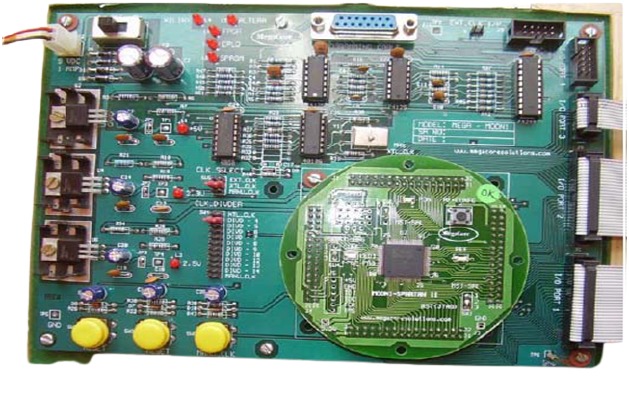

UNIVERSAL VLSI BOARD (MEGA-MOON1)
TECHNICAL SPECIFICATIONS:
Universal Platforms for ALTERA/XILINX/FPGA/CPLD devices.
Modules available in PLCC 84, VQ 100 and PQG 208 packages.
Support for 5V, 3.3V, 2.5V and 1.2V devices [On board Regulators].
Power supply jack with reverse polarity protection.
On board power switch.
On board, 4 MHz clock with on board clock divider (4MHz to 244Hz).
Manual clocking facility.
External clock input facility.
On board +ve and -ve edge triggered reset.
All I/O's accessible externally through 10 and 26 pin connectors.
Up to 70 I/O support.
Auto family detects facility with LED indication (Xilinx or Altera).
Auto device detect facility (FPGA, CPLD with LED indication).
On board Altera Byte blaster and Xilinx JTAG circuitry.
On board configuration switch for FPGA's.
FPGA daughter board with SPROM interfaces facility.
