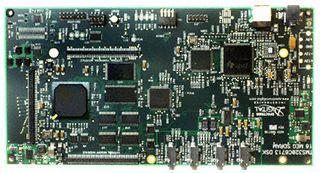

The C67 13 TM DSK builds on TI’s industry-leading line of low cost, easy-to-use DSP starter kit (DSK) developments boards. The high-performance board features the TMS320C6713 floating-point DSP. Capable of performing 1350 million floating-point operations per second (MFLOPS). The C6713 DSP makes the C6713 DSL the most powerful DSK development board.

The DSK is USB port interfaced platform that allows to efficiently develop and test applications for the C6713.The DSK consists of a C6713-based printed circuit board that will serve as a hardware reference design for TI’s customers’ Products.With extensive host PC and target DSP software support, including bundled TI tools, The DSK provides ease-of-use and capabilities that are attractive to DSP Engineers.

The following checklist details items that are shipped with the C6711 DSK Kit,

• TMS320C6713 DSK TMS320C6713 DSK development board
• Other hardware External 5VDC Power Supply IEEE 1284 compliant male-to-female cable
• CD-ROM Code Composer studio DSK tools

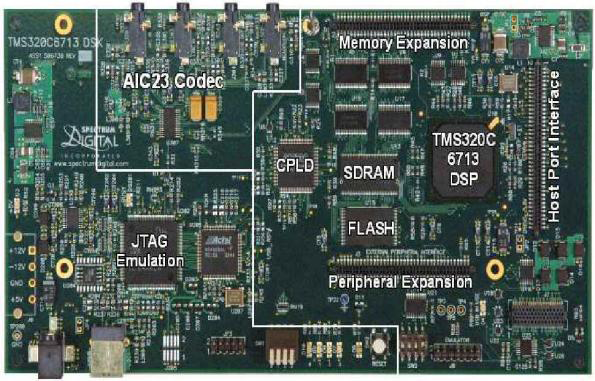

The C6713 DSK has a TMS320C6713 DSP onboard that allows full-speed verification of code with code composer studio. The C76713 DSK Provides:

• A USB Interfaces
• SDRAM ad ROM
• An analog interface circuit for data conversion(AIC)
• An I/O Port
• Embedded JTAG emulation support

Connectors on the C6713 DSK provide DSP external memory interface (EMIF) and peripheral signals that enable its functionality to be expanded with custom or third party daughter boards. The DSK provides a C6713 hardware reference design that can assist you in the development of your own C6713-based products. In addition to providing a reference for interfacing the DSP to various types of memories and peripherals. The design also addresses power,clock, JTAG, and parallel peripheral interfaces. The C6711 DSK includes a stereo codec. This analog interface circuit (AIC) has the following characteristics:
High-Performance stereo codec • 90-dB SNR Multibit Sigma-Delta ADC(A-Weighted at 48 KHZ) • 100-dB SNR Multibit Sigma-Delta ADC(A-Weighted at 48 KHZ) • 1.42 V-3.6 V core digital supply : Compatible with TI C54xDSP Core voltages • 2.7 V-3.6 V Buffer and Analog Supply :Compatible both TI C54xDSP buffer voltages • 8-KHZ-96-KHZ sampling-Frequency Support -------
Software Control Via TI McBSP-Compatible Multiprotocol serial port • 1 2 C-Compatible and SPI-Compatible Serial-Port protocols • Glueless Interface to TI McBSPs AUDIO-Data Input/Output Via TI McBSP-Compatible Programmable Audio Interface • 1 2 S-Compatible Interface requiring only one McBSP for both ADC and DAC • Standard 12S ,MSB,or LSB Justified-Data Transfers • 16/20/24/32-Bit Word lengths
