DIGITAL FUNCTION GENERATOR- 1MHz
SPECIFICATIONS:
Wave Forms
:
Sine, Square, Triangle, & TTL Output.
Frequency Range
:
1 Hz to 1 MHz for all functions in 6 decade steps with calibrated linear variation in between steps.
Frequency Counter
:
Four digit display for output frequency.
Accuracy
:
Within + 2% in first 5 ranges & + 4% last range.
Output Amplitude
:
Standard 0 – 20Vpp with adjustable offset.
DC Offset
:
Continuously variable + 10 V in open circuit, combined signal plus offset is limited to 20 Vpp.
Output Impendence
:
600 ohms (+5%) option: 50?.
Attenuation
:
0- 20db.
Output coupling
:
DC.
Sine Wave
:
Less than 1% from 10 Hz to 100 KHz. Harmonics more than 30 db down from fundamental for 100 KHz to 1 MHz.
Amplitude Flatness
:
Sine, Square, Triangle – Ref 10 KHz within 0.5 db from 10 Hz to 10 KHz within + 2 db from 10 Khz to 100 KHz Sine, Triangle and square wave amplitude match within 1 db @10 KHz.
Square Wave:
Rise time
:
<100ns.
Fall time
:
<40ns.
Duty Cycle
:
49% to 51%
Symmetry
:
-NA-
Triangle
:
<1%
Aberrations
:
Within + 5% of Vpp of the waveform
Triangle Linearity
:
0.5%
VCO Input
:
Facilities remote programming of frequency / frequency modulation to sweep frequency around dial setting.
Triangle
:
<1%
Characteristics:
Sweep frequency ration
:
: 100:1
Impedance
:
1 K phms Input level : Min 20 m V, Max : + 5V.
TTL Square Wave:
Rise time
:
: <50ns
Fall Time
:
: <50ns
Amplitude
:
5 Vpp (+3%)
Power
:
: 230V+10%, 50MHz, AC single Phase
Applications
:
Useful in educational institutions and industrial applications, can used in Audio / Tape recorders servicing Lab experiments.

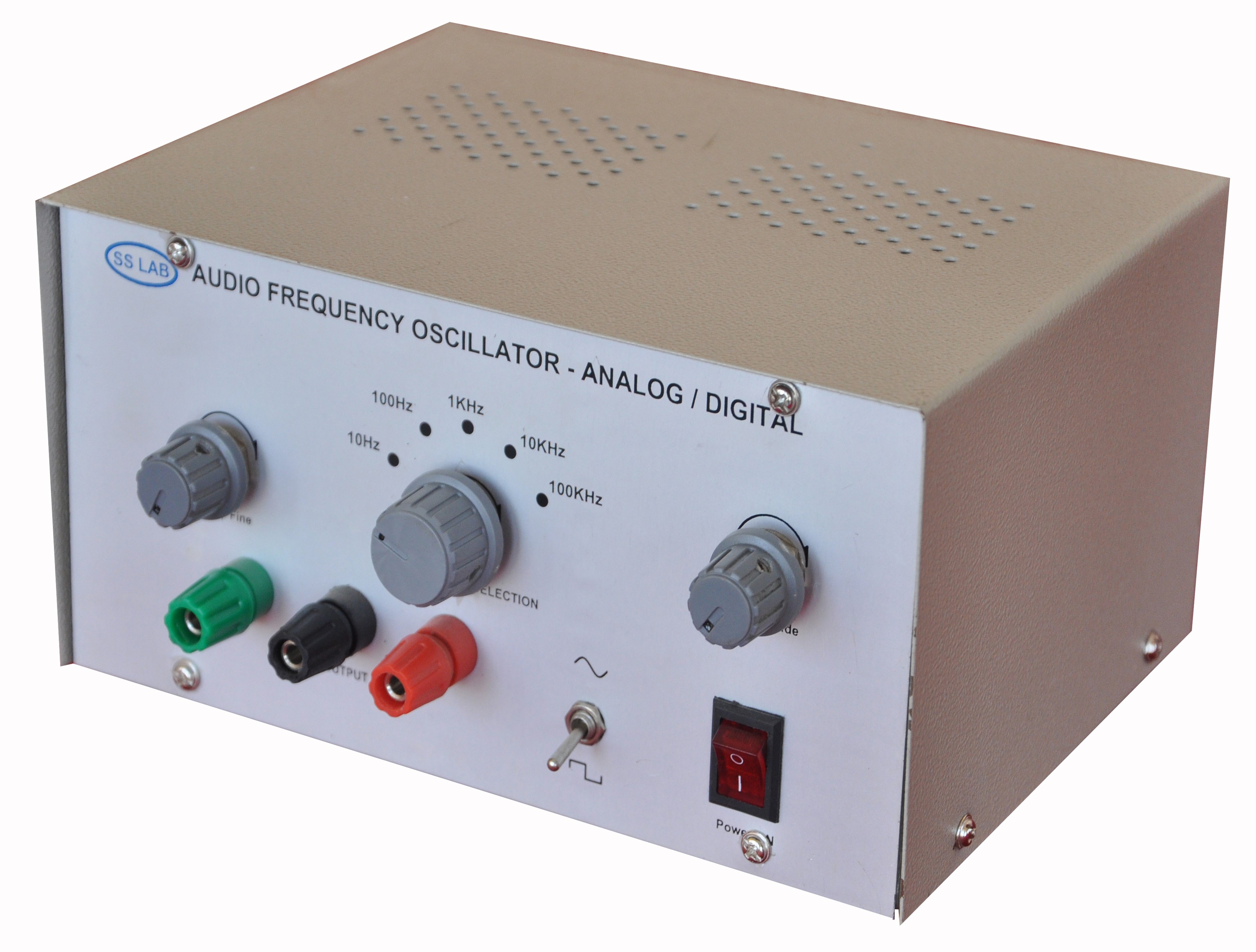

AUDIO FREQUENCY OSICLLATOR
SPECIFICATIONS:
Wave Forms
:
Sine, Square Output
Frequency Range
:
2 Hz to 200KHz for all functions in 5 decade
Accuracy
:
Within ±2% in first 5 ranges & ±4% last range
Output Amplitude/b>
:
Standard 0 – 20Vpp with adjustable
Output Impendence
:
600 ohms (+5%) option: 50?.
Square Wave:
Rise time
:
<60ns.
Fall time
:
<60ns.
Duty Cycle
:
49% to 51%
Fall Time
:
<50ns
Applications
:
Useful in educational institutions and industrial applications, can used in Audio / Tape recorders servicing Lab experiments.

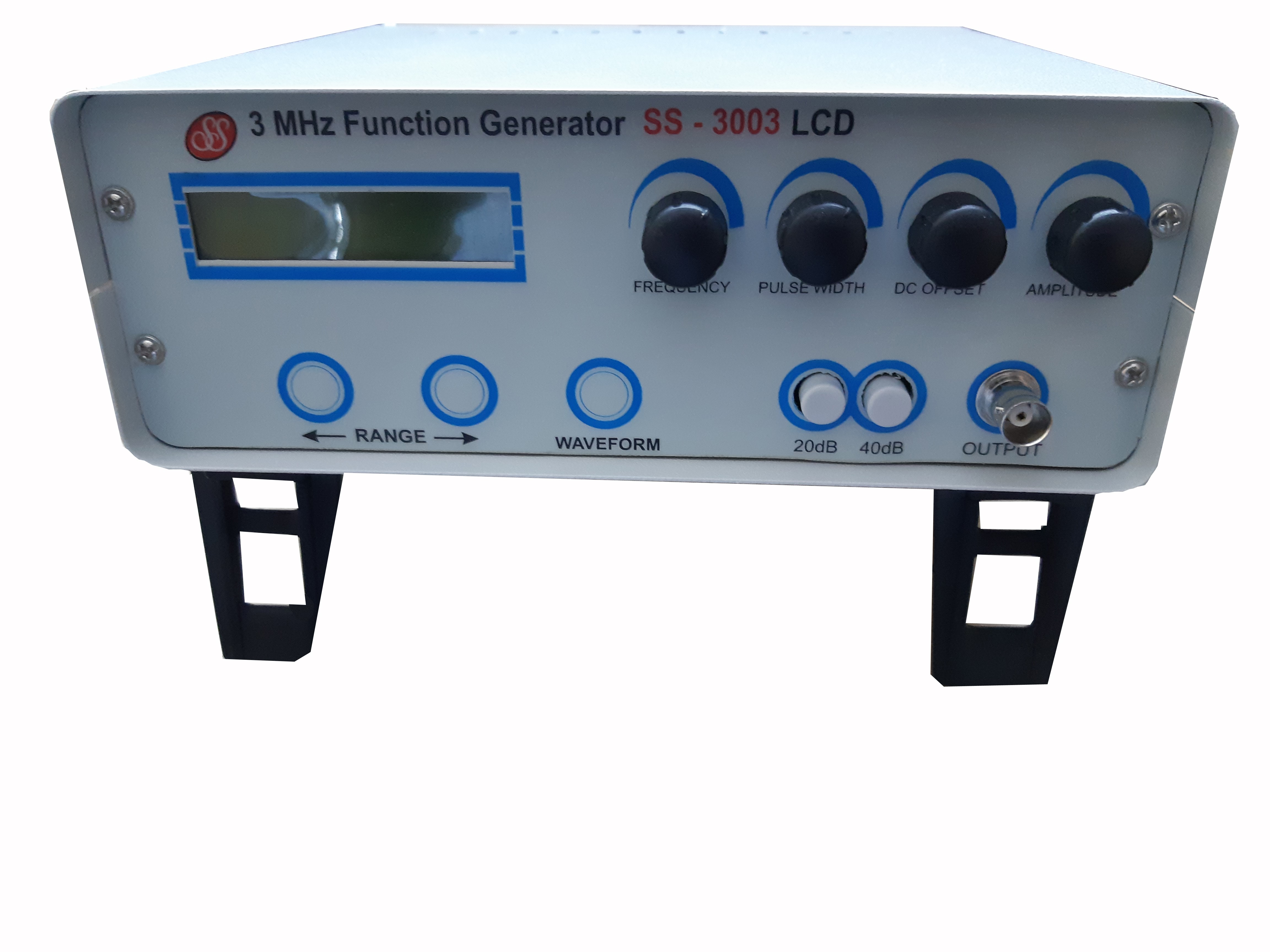

DIGITAL FUNCTION GENERATOR- 3MHz
SPECIFICATIONS:
Wave Forms
:
Sine, Square, Triangle, & TTL Output.
Frequency Range
:
1 Hz to 1 MHz for all functions in 6 decade steps with calibrated linear variation in between steps.
Frequency Counter
:
Four digit display for output frequency.
Accuracy
:
Within + 2% in first 5 ranges & + 4% last range.
Output Amplitude
:
Standard 0 – 20Vpp with adjustable offset.
DC Offset
:
Continuously variable + 10 V in open circuit, combined signal plus offset is limited to 20 Vpp.
Output Impendence
:
600 ohms (+5%) option: 50?.
Attenuation
:
0- 20db.
Output coupling
:
DC.
Sine Wave
:
Less than 1% from 10 Hz to 100 KHz. Harmonics more than 30 db down from fundamental for 100 KHz to 1 MHz.
Amplitude Flatness
:
Sine, Square, Triangle – Ref 10 KHz within 0.5 db from 10 Hz to 10 KHz within + 2 db from 10 Khz to 100 KHz Sine, Triangle and square wave amplitude match within 1 db @10 KHz.
Square Wave:
Rise time
:
<100ns.
Fall time
:
<40ns.
Duty Cycle
:
49% to 51%
Symmetry
:
-NA-
Triangle
:
<1%
Aberrations
:
Within + 5% of Vpp of the waveform
Triangle Linearity
:
0.5%
VCO Input
:
Facilities remote programming of frequency / frequency modulation to sweep frequency around dial setting.
Triangle
:
<1%
Characteristics:
Sweep frequency ration
:
: 100:1
Impedance
:
1 K phms Input level : Min 20 m V, Max : + 5V.
TTL Square Wave:
Rise time
:
: <50ns
Fall Time
:
: <50ns
Amplitude
:
5 Vpp (+3%)
Power
:
: 230V+10%, 50MHz, AC single Phase
Applications
:
Useful in educational institutions and industrial applications, can used in Audio / Tape recorders servicing Lab experiments.

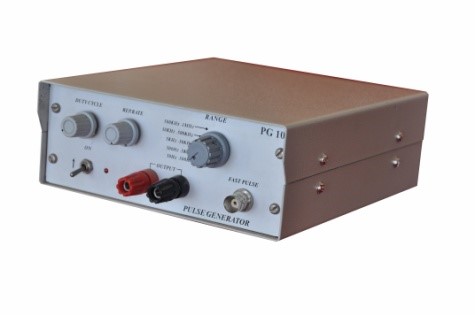

PULSE GENERATOR
FEATURES:
Frequency range up to 1MHz.
Fast Rise/Fall time (? 20ns).
Variable pulse width.
Pulse and TTL outputs.
SPECIFICATIONS:
Frequency range
:
Pulse 50Hz to 1MHz in 5 ranges & variable control.
Square wave repetition
:
Frequency variations in between range switch steps.
Pulse width
:
50ns – 50ms in 5 ranges & variable control
Duty cycle
:
Normally up to 80%, 50% at 1MHz.
Rise & Fall time
:
? 20ns.
Input modes
:
Square, Gate.
Square wave repetition
:
Frequency variations in between range switch steps.
Output modes
:
: Square, TTL.
Output impedance
:
open circuit
Output amplitude
:
10V p-p open circuit, 5V TTL.
Power supply
:
230V AC ± 10%, 50Hz.
Operating temperature
:
0 - 40ºC
